| Part Number | WEO012864G |
| Manufacturer | Winstar |
| Title | Display Module |
| Description | 1 NC No Connection 2 VSS Ground Oin 3~10 NC No Connection 11 VDD Voltage for logic 12 BS1 Interface selection 13 BS2 Interface selection 14 NC No ... |
| Features |
1. 128*64 Dot Matrix 2. Built-in controller SSD1309ZC 3. +3V Power supply 4. 1/64 duty 5. Interface: 6800, 8080, SPI, I2C 6. Polarizer optional
Pin No. Symbol Description 1 NC No Connection 2 VSS Ground Oin
3~10 NC No Connection 11 VDD V...
|
| Datasheet |

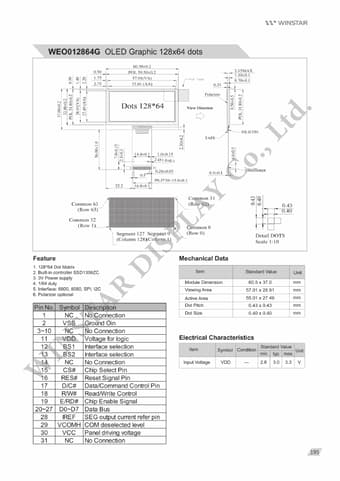

 WEO012864G Datasheet
|
