G24 Innovations
G24 Innovations

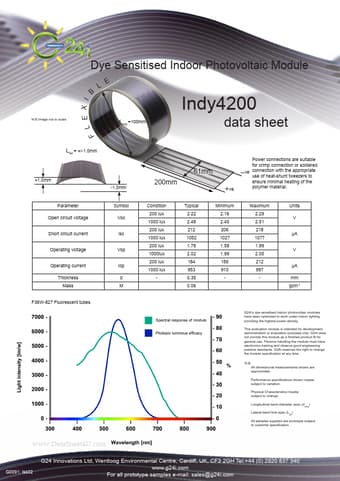

G0091 Datasheet Preview

G0091 Datasheet

Dye Sensitised Indoor Photovoltaic Module

No Preview Available !

G0091 pdf
N.B.Image  not  to  scale
Dye  Sensitised  Indoor  Photovoltaic  Module
LE
B
dlong  =100mm
Indy4200
data  sheet
Llat  =  +/-­1.0mm
+1.0mm
Parameter
Open  circuit  voltage
Short  circuit  current
Operating  voltage
Operating  current
Thickness
Mass
F36W-­827  Fluorescent  tubes
-­1.0mm
Symbol
Voc
Isc
Vop
Iop
d
M
200mm
61mm
+ve
Power  connections  are  suitable
for  crimp  connection  or  soldered
_ve connection  with  the  appropriate
use  of  heat-­shunt  tweezers  to
ensure  minimal  heating  of  the
polymer  material.
Condition
200  lux
1000  lux
200  lux
1000  lux
200  lux
1000lux
200  lux
1000  lux
Typical
2.22
2.48
212
1052
1.78
2.02
184
953
0.35
0.06
Minimum
2.16
2.45
206
1027
1.58
1.99
156
910
Maximum
2.29
2.51
218
1077
1.99
2.05
212
997
Units
V
µA
V
µA
mm
gcm-­2
G24i’s  dye  sensitised  indoor  photovoltaic  modules
have  been  optimised  to  work  under  indoor  lighting
providing  the  highest  power  density.
This  evaluation  module  is  intended  for  development,
demonstration  or  evaluation  purposes  only.  G24i  does
QRWSURYLGHWKLVPRGXOHDVD¿QLVKHGSURGXFW¿WIRU
general  use.  Persons  handling  the  module  must  have
electronics  training  and  observe  good  engineering
practice  standards.  G24i  reserves  the  right  to  change
WKHPRGXOHVSHFL¿FDWLRQDWDQ\WLPH
N.B.
All  dimensional  measurements  shown  are
approximate.
3HUIRUPDQFHVSHFL¿FDWLRQVVKRZQPD\EH
subject  to  variation.
Physical  Characteristics  maybe
subject  to  change.
Longitudinal  bend  diameter  spec  (d )
long
Lateral  bend  limit  spec  (L )
lat
All  samples  supplied  are  prototype  subject
WRFXVWRPHUVSHFL¿FDWLRQ
www.DataSheet4U.com
G0091;;  Iss02
G24  Innovations  Ltd,  Wentloog  Environmental  Centre,  Cardiff,  UK,  CF3  2GH  Tel:+44  (0)  2920  837  340
www.g24i.com
For  all  prototype  samples  e-­mail:  sales@g24i.com


Part Number G0091
Description Dye Sensitised Indoor Photovoltaic Module
Maker G24 Innovations
Total Page 1 Pages
