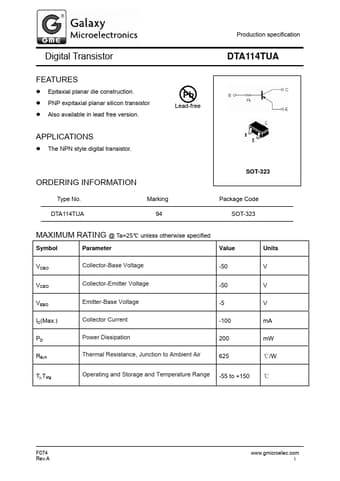

Digital Transistor

No Preview Available !

DTA114TUA pdf
Digital Transistor
FEATURES
z Epitaxial planar die construction.
z PNP expitaxial planar silicon transistor
z Also available in lead free version.
APPLICATIONS
z The NPN style digital transistor.
Pb
Lead-free
Production specification
DTA114TUA
ORDERING INFORMATION
Type No.
Marking
DTA114TUA
94
SOT-323
Package Code
SOT-323
MAXIMUM RATING @ Ta=25unless otherwise specified
Symbol
Parameter
Value
VCBO
VCEO
VEBO
IC(Max.)
PD
RθJA
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
Thermal Resistance, Junction to Ambient Air
-50
-50
-5
-100
200
625
Tj,Tstg
Operating and Storage and Temperature Range -55 to +150
Units
V
V
V
mA
mW
/W
F074
Rev.A
www.gmicroelec.com
1



GME
GME

DTA114TUA Datasheet Preview

DTA114TUA Datasheet

Digital Transistor

No Preview Available !

DTA114TUA pdf
Production specification
Digital Transistor
DTA114TUA
ELECTRICAL CHARACTERISTICS @ Ta=25unless otherwise specified
Parameter
Symbol Test conditions
MIN TYP MAX UNIT
Collector-Base breakdown Voltage
Collector-Emitter breakdown Voltage
Emitter-Base breakdown Voltage
Collector cutoff Current
Emitter cutoff Current
Collector-Emitter saturation voltage
DC Current Gain
BVCBO
BVCEO
BVEBO
ICBO
IEBO
VCE(sat)
hFE
IC=-50μA
IC=-1mA
IE=-50μA
VCB=-50V
VEB=-4V
IC/IB=-10mA/-1mA
IC=-1mA,VCE=-5V
-50 V
-50 V
-5 V
- - -0.5 μA
- - -0.5 μA
-0.3 V
100 250 600
Input Resistor(R1)
R1
7 10 13 k
Gain-Bandwidth Product
fT
VCE=-10V,IE=5mA,
f=100MHz
-
250 -
MHz
TYPICAL CHARACTERISTICS @ Ta=25unless otherwise specified
F074
Rev.A
www.gmicroelec.com
2
