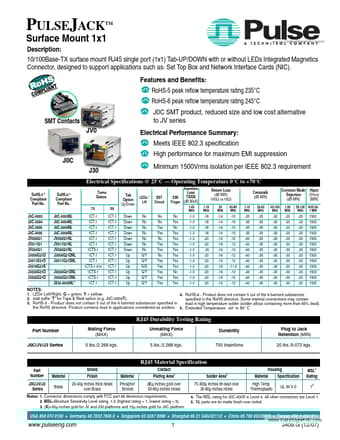

PULSEJACKTM Surface Mount 1x1

No Preview Available !

J3006G21D pdf
PULSEJACKTM
Surface Mount 1x1
www.DataSheet4U.com
Description:
10/100Base-TX surface mount RJ45 single port (1x1) Tab-UP/DOWN with or without LEDs Integrated Magnetics
Connector, designed to support applications such as: Set Top Box and Network Interface Cards (NIC).
Features and Benefits:
RoHS-5 peak reflow temperature rating 235°C
RoHS-6 peak reflow temperature rating 245°C
SMT Contacts
JV0
J0C SMT product, reduced size and low cost alternative
to JV series
Electrical Performance Summary:
Meets IEEE 802.3 specification
J0C
J30
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
Electrical Specifications @ 25°C — Operating Temperature 0°C to +70°C
RoHS-5 3
Compliant
Part No.
RoHS-6 4
Compliant
Part No.
Turns
Ratios
TX RX
Tab
Option
Up/Down
LEDs 1
L/R
BST
Circuit
EMI
Finger
Insertion
Loss
TX/RX
(dB MAX)
1-65
MHz
Return Loss
(dB MIN)
100Ω (±15Ω)
1-10 30 60-80
MHz MHz MHz
Crosstalk
(dB MIN)
Common Mode Hipot
Rejection (Vrms)
(dB MIN)
(MIN)
1-10 30-60 60-100 1-50 50-130 @60 Hz
MHz MHz MHz MHz MHz 1 MIN
J0C-0003
J0C-0003NL
1CT:1
1CT:1 Down
No
No
No
-1.0 -18 -14 -10 -35 -35 -30 -20 -20 1500
J0C-0004
J0C-0004NL
1CT:1
1CT:1 Down
No
No Yes -1.0 -18 -14 -10 -35 -35 -30 -20 -20 1500
J0C-0005
J0C-0005NL
1CT:1
1CT:1 Down
No
Yes No
-1.0 -18 -14 -10 -35 -35 -30 -20 -20 1500
J0C-0006
J0C-0006NL
1CT:1
1CT:1 Down No
Yes Yes
-1.0 -18 -14 -10 -35 -35 -30 -20 -20 1500
JV006I21
JV006I21NL
1CT:1
1CT:1 Down
No
No Yes -1.0 -20 -16 -12 -40 -35 -30 -30 -20 1500
JV011I21
JV011I21NL
1CT:1
1CT:1 Down No
Yes Yes
-1.0 -20 -16 -12 -40 -35 -30 -30 -20 1500
JV026I21
JV026I21NL
1CTS:1 1CT:1 Down No
Yes Yes
-1.0 - 20 -16 -12 -40 -35 -30 -30 -20 1500
J3006G21D J3006G21DNL
1CT:1
1CT:1 Up
G/Y
No Yes -1.0 -20 -16 -12 -40 -35 -30 -30 -20 1500
J3011G21D
J3018G21K
J3011G21DNL
_
1CT:1
1CT:1
1CTS:1.414 1CT:1
Up
Up
G/Y Yes Yes
G/G Yes Yes
-1.0 -20 -16 -12 -40 -35 -30 -30 -20 1500
-1.0 -20 -16 -11.5 -40 -35 -30 -30 -20 1500
J3026G01D J3026G01DNL
1CTS:1 1CT:1 Up
G/Y Yes No
-1.0 -20 -16 -12 -40 -35 -30 -30 -20 1500
J3026G21D
_
J3026G21DNL
JX30-0005NL5
1CTS:1
1CT:1
1CT:1
1CT:1
Up
Up
G/Y Yes Yes -1.0 -20 -16 -12 -40 -35 -30 -30 -20 1500
G/Y Yes Yes -1.0 -20 -16 -12 -40 -35 -30 -30 -20 1500
NOTES:
1. LEDs Left/Right: G = green; Y = yellow.
4. RoHS-6 - Product does not contain 5 out of the 6 banned substances
2. Add suffix “T” for Tape & Reel option (e.g. J0C-0004T).
specified in the RoHS directive. Some internal connections may contain
3. RoHS-5 - Product does not contain 5 out of the 6 banned substances specified in lead in high temperature solder (solder alloys containing more than 85% lead).
the RoHS directive. Product contains lead in applications considered as solders. 5. Extended Temperature: -40° to 85° C
Part Number
Mating Force
(MAX)
RJ45 Durability Testing Rating
Unmating Force
(MAX)
Durability
Plug to Jack
Retention (MIN)
J0C/JV/J3 Series
5 lbs./2.268 kgs.
5 lbs./2.268 kgs.
750 Insertions
20 lbs./9.072 kgs.
RJ45 Material Specification
Part
Number Material
Shield
Finish
Material
Contact
Plating Area3
Solder Area5
Housing
MSL2
Material Specification Rating
J0C/JV/J3
Series
Brass
20-40µ inches thick nickel Phosphor
over Brass
Bronze
(X)µ inches gold over
30-80µ inches nickel
75-300µ inches tin-lead over
30-80µ inches nickel
High Temp.
Thermoplastic
UL 94 V-0
14
Notes: 1. Connector dimensions comply with FCC part 68 dimension requirements.
2. MSL=Moisture Sensitivity Level rating: 1-5 (highest rating = 1, lowest rating = 5).
3. (X)=30µ inches gold for JV and J30 platforms and 15µ inches gold for J0C platform.
4. The MSL rating for J0C-000X is Level 4. All other connectors are Level 1.
5. NL parts are tin matte finish over nickel.
USA 858 674 8100 Germany 49 7032 7806 0 Singapore 65 6287 8998 Shanghai 86 21 54643211/2 China 86 769 85538070 Taiwan 886 3 4641811
www.pulseeng.com
1
J409.G (12/07)



PULSE
PULSE

J3006G21D Datasheet Preview

J3006G21D Datasheet

PULSEJACKTM Surface Mount 1x1

No Preview Available !

J3006G21D pdf
PULSEJACKTM
Surface Mount 1x1
J0C-0003/4
J0C Platform Schematics
J0C-0005/6
www.DataSheet4U.com
TD+ 1
1 TX+
CT 4
TD- 2
RD+ 3
1CT : 1
TRANSMIT
2 TX-
3 RX+
CT 5
RD- 6
NC 7
1CT : 1
RECEIVE
6 RX-
4
5
GND* 8
*Connecting pin 8 to Ground makes J00-0042/46/64/66
footprint compatible to J00-0014/45/61/65.
7
8
TD+ 1
CT 4
TD- 2
RD+ 3
75
1CT : 1
TRANSMIT
CT 5
RD- 6
1CT : 1
RECEIVE
75
NC 7
75
0.001mF
GND 8
NOTE: Connect GND to PCB ground.
75
1 TX+
2 TX-
3 RX+
6 RX-
4
5
7
8
USA 858 674 8100 Germany 49 7032 7806 0 Singapore 65 6287 8998 Shanghai 86 21 54643211/2 China 86 769 85538070 Taiwan 886 3 4641811
www.pulseeng.com
2
J409.G (12/07)
