Panasonic Electronic Components Datasheet

EETHC1V153JJ Datasheet

Aluminum Electrolytic Capacitors

No Preview Available !

EETHC1V153JJ pdf

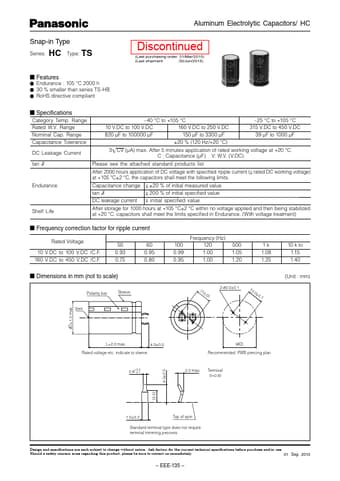

Snap-in Type
Series: HC Type: TS
Aluminum Electrolytic Capacitors/ HC
Discontinued
Features
Endurance : 105 °C 2000 h
30 % smaller than series TS-HB
RoHS directive compliant
Specifications
Category Temp. Range
Rated W.V. Range
Nominal Cap. Range
Capacitance Tolerance
DC Leakage Current
tan d
Endurance
Shelf Life
–40 °C to +105 °C
10 V.DC to 100 V.DC
160 V.DC to 250 V.DC
–25 °C to +105 °C
315 V.DC to 450 V.DC
820 μF to 100000 μF
150 μF to 3300 μF
39 μF to 1000 μF
±20 % (120 Hz/+20 °C)
3CV (μA) max. After 5 minutes application of rated working voltage at +20 °C.
C : Capacitance (μF) V: W.V. (V.DC)
Please see the attached standard products list
After 2000 hours application of DC voltage with specified ripple current (< rated DC working voltage)
at +105 °C±2 °C, the capacitors shall meet the following limits.
Capacitance change < ±20 % of initial measured value
tan d
< 200 % of initial specified value
DC leakage current < initial specified value
After storage for 1000 hours at +105 °C±2 °C within no voltage applied and then being stabilized
at +20 °C, capacitors shall meet the limits specified in Endurance. (With voltage treatment)
Frequency correction factor for ripple current
Rated Voltage
10 V.DC to 100 V.DC /C.F.
160 V.DC to 450 V.DC /C.F.
50
0.93
0.75
60
0.95
0.80
100
0.99
0.95
Frequency (Hz)
120
1.00
1.00
500
1.05
1.20
1 k 10 k to
1.08 1.15
1.25 1.40
Dimensions in mm (not to scale)
Polarity bar
Sleeve
Vent
(10.0)
2-02.0±0.1
10.0±0.1
(Unit : mm)
L+2.0 max.
4.0±0.5
Rated voltage etc. indicate to sleeve.
0.8+–00..21
(0D)
Recommended PWB piercing plan
2.0 max. Terminal
(t=0.8)
1.5±0.2
Top of spin
Standard terminal type does not require
terminal trimming peocess.
Design and specications are each subject to change without notice. Ask factory for the current technical specications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Sep. 2013
– EEE-135 –


Panasonic Electronic Components Datasheet

EETHC1V153JJ Datasheet

Aluminum Electrolytic Capacitors

No Preview Available !

EETHC1V153JJ pdf
Aluminum Electrolytic Capacitors/ HC
Standard Products Discontinued
Endurance : 105 °C 2000 h
Case size
Part No.
Specification
Min. Packaging Q'ty
W.V. Cap.
(120 Hz)
(±20 %)
Dia.
Length
PET sleeve
Terminal Length
4.0 mm
(Without Top Plate)
Ripple
Current
(120 Hz)
(+105 °C)
tan d
(120 Hz)
(+20 °C)
max.
(V. DC)
(μF)
(mm)
(mm)
(A r.m.s.)
(pcs)
12000
15000
18000
22000
27000
33000
10
39000
47000
56000
68000
82000
100000
10000
12000
15000
18000
22000
16 27000
33000
39000
47000
56000
68000
22
22
22
25
22
25
22
25
30
22
25
25
30
35
25
30
35
30
35
30
35
35
35
22
22
25
22
22
25
22
25
30
22
25
30
35
25
30
30
35
30
35
30
35
35
25 EETHC1A123HJ
30 EETHC1A153HJ
30 EETHC1A183HJ
25 EETHC1A183JJ
35 EETHC1A223HJ
30 EETHC1A223JJ
40 EETHC1A273HJ
35 EETHC1A273JJ
25 EETHC1A273KJ
45 EETHC1A333HJ
40 EETHC1A333JJ
45 EETHC1A393JJ
30 EETHC1A393KJ
25 EETHC1A393LJ
50 EETHC1A473JJ
35 EETHC1A473KJ
30 EETHC1A473LJ
40 EETHC1A563KJ
35 EETHC1A563LJ
45 EETHC1A683KJ
40 EETHC1A683LJ
45 EETHC1A823LJ
50 EETHC1A104LJ
25 EETHC1C103HJ
30 EETHC1C123HJ
25 EETHC1C123JJ
35 EETHC1C153HJ
40 EETHC1C183HJ
30 EETHC1C183JJ
45 EETHC1C223HJ
35 EETHC1C223JJ
25 EETHC1C223KJ
50 EETHC1C273HJ
40 EETHC1C273JJ
30 EETHC1C273KJ
25 EETHC1C273LJ
45 EETHC1C333JJ
35 EETHC1C333KJ
40 EETHC1C393KJ
30 EETHC1C393LJ
45 EETHC1C473KJ
35 EETHC1C473LJ
50 EETHC1C563KJ
40 EETHC1C563LJ
45 EETHC1C683LJ
2.20 0.65
2.30 0.65
2.40 0.65
2.40 0.65
2.60 0.65
2.60 0.65
3.10 0.65
3.10 0.65
3.10 0.65
3.40 0.65
3.40 0.65
3.70 0.71
3.70 0.71
3.70 0.71
4.20 0.79
4.20 0.79
4.20 0.79
5.00 0.88
5.00 0.88
5.40 1.00
5.40 1.00
5.90 1.14
6.50 1.32
2.60 0.55
2.90 0.55
2.90 0.55
3.20 0.55
3.50 0.55
3.50 0.55
3.80 0.55
3.80 0.55
3.80 0.55
4.20 0.55
4.20 0.55
4.20 0.55
4.20 0.55
4.70 0.55
4.70 0.55
5.10 0.61
5.10 0.61
5.50 0.69
5.50 0.69
6.00 0.78
6.00 0.78
6.40 0.90
200
200
200
200
200
200
200
200
100
200
200
200
100
100
200
100
100
100
100
100
100
100
100
200
200
200
200
200
200
200
200
100
200
200
100
100
200
100
100
100
100
100
100
100
100
When capacitors of 035×45L and 035×50L are mounted on PWB, reinforce them with mounting clamp or adhesives.
(Avoid using adhesives including halogenated compositions.)
Design and specications are each subject to change without notice. Ask factory for the current technical specications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Sep. 2013
– EEE-136 –
