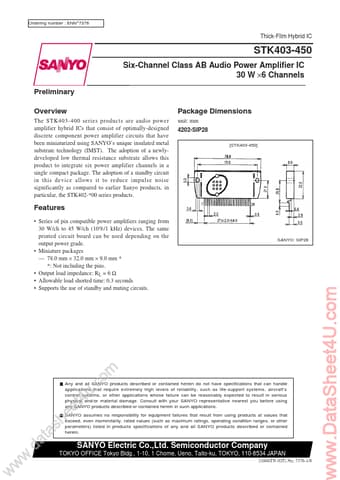

Ordering number : ENN*7376
Preliminary
Thick-Film Hybrid IC
STK403-450
Six-Channel Class AB Audio Power Amplifier IC
30 W ×6 Channels
Overview
The STK403-400 series products are audio power
amplifier hybrid ICs that consist of optimally-designed
discrete component power amplifier circuits that have
been miniaturized using SANYO’s unique insulated metal
substrate technology (IMST). The adoption of a newly-
developed low thermal resistance substrate allows this
product to integrate six power amplifier channels in a
single compact package. The adoption of a standby circuit
in this device allows it to reduce impulse noise
significantly as compared to earlier Sanyo products, in
particular, the STK402-*00 series products.
Features
Package Dimensions
unit: mm
4202-SIP28
[STK403-450]
• Series of pin compatible power amplifiers ranging from
30 W/ch to 45 W/ch (10%/1 kHz) devices. The same
printed circuit board can be used depending on the
output power grade.
• Miniature packages
— 78.0 mm × 32.0 mm × 9.0 mm *
*: Not including the pins.
• Output load impedance: RL = 6
• Allowable load shorted time: 0.3 seconds
• Supports the use of standby and muting circuits.
SANYO: SIP28
omAny and all SANYO products described or contained herein do not have specifications that can handle
.capplications that require extremely high levels of reliability, such as life-support systems, aircraft’s
ucontrol systems, or other applications whose failure can be reasonably expected to result in serious
t4physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
eeSANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
hparameters) listed in products specifications of any and all SANYO products described or contained
s herein.
.data SANYO Electric Co.,Ltd. Semiconductor CompanyTOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
www 21604TN (OT) No. 7376-1/8


Sanyo Electric Components Datasheet

STK403-450 Datasheet

6-Channel Class AB Audio Power Amplifier IC

No Preview Available !

STK403-450 pdf
STK403-450
Series Organization
These products are organized as a series based on their output capacity.
Item
Output 1 (10%/1 kHz)
Output 2 (0.6%/20 Hz to 20 kHz)
Maximum supply voltage (No signal)
Maximum supply voltage (6 )
Recommended supply voltage (6 )
Package
STK403-430
30 W ×6 ch
20 W ×6 ch
±36 V
±34 V
±23 V
Type No.
STK403-440
40 W ×6 ch
25 W ×6 ch
±38 V
±36 V
±26 V
78.0 mm × 32.0 mm × 9.0 mm
STK403-450
45 W ×6 ch
30 W ×6 ch
±40 V
±38 V
±28 V
Specifications
Maximum Ratings at Ta = 25°C
Parameter
Symbol
Conditions
Maximum supply voltage (No signal) VCC max(0)
Maximum supply voltage
VCC max(1)
Minimum operating supply voltage
VCC min
Maximum operation flow-in current (pin 23) IST OFF max
Thermal resistance
θ j -c
RL = 6
Per power transistor
Junction temperature
Operating IC substrate temperature
Tj max
Tc max
Both the Tj max and the Tc max conditions must be met.
Storage temperature
Tstg
Allowable load shorted time *4
ts VCC = ±28.0 V, RL = 6 , f = 50 Hz, PO = 30 W, 1ch drive
Ratings
±40
±38
±10
1.2
3.6
150
125
–30 to +125
0.3
Operating Characteristics at Tc = 25°C, RL = 6 (noninductive load), Rg = 600 , VG = 30 dB
Unit
V
V
V
mA
°C/W
°C
°C
°C
s
Parameter
Output power *1
Total harmonic distortion *1
Symbol
PO (1)
PO (2)
THD (1)
THD (2)
VCC (V) f (Hz)
±28.0 20 to 20 k
±28.0
1k
±28.0 20 to 20 k
±28.0
1k
Conditions*1
PO (W) THD (%)
0.6
10
5.0
5.0
VG = 30 dB
VG = 30 dB
min
27
Ratings
typ
30
45
0.03
max
0.6
Unit
W
%
Frequency characteristics
Input impedance
fL, fH
ri
±28.0
±28.0
1k
1.0
1.0
+0 –3 dB
20 to 50 k
55
Hz
k
Output noise voltage *2
Quiescent current
Neutral voltage
Current flowing into pin 23
in standby mode *6
VNO
ICCO
VN
IST ON
±34.0
±34.0
±34.0
±28.0
Rg = 2.2 k
1.0 mVrms
No loading
60 110 180 mA
–70 0 +70 mV
V23 = 5 V, current limiting
resistance: 6.2 k
0 mA
Current flowing into pin 23
in operating mode *6
IST OFF
±28.0
0.4 1.2 mA
Notes: 1. 1ch drive
2. Unless otherwise noted, use a constant-voltage supply for the power supply used during inspection.
3. The output noise voltage values shown are peak values read with a VTVM. However, an AC stabilized (50 Hz) power supply should be used to
minimize the influence of AC primary side flicker noise on the reading.
4. Use the transformer power supply circuit shown in the figure below for allowable load shorted time measurement and output noise voltage
measurement.
5. Design applications so that the minus pre-VCC line (pin 17) is at the lowest potential at all times.
6. A limiting resistor that assures that the maximum operating current flowing into the standby pin (pin 23) does not exceed the maximum rating must
be included in application circuits. This IC operates when a voltage higher than VBE (about 0.6 V) is applied to the standby pin.
DBA30C
4700 µF
+
500
+VCC
+
500
4700 µF
--VCC
Designated Transformer Power Supply (RP-25 equivalent)
No. 7376-2/8
