SILICON POWER TRANSISTOR

No Preview Available !

2SC4370 pdf

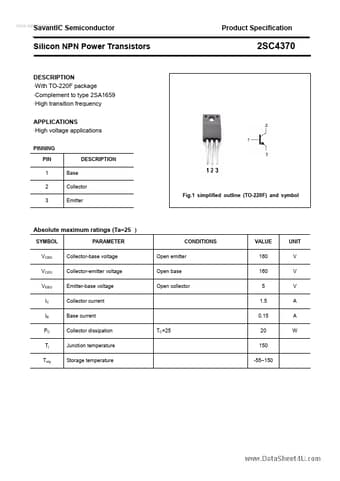

www.datSasaheveat4nu.tcIoCm Semiconductor
Silicon NPN Power Transistors
Product Specification
2SC4370
DESCRIPTION
·With TO-220F package
·Complement to type 2SA1659
·High transition frequency
APPLICATIONS
·High voltage applications
PINNING
PIN
1
2
3
DESCRIPTION
Base
Collector
Emitter
Fig.1 simplified outline (TO-220F) and symbol
Absolute maximum ratings (Ta=25 )
SYMBOL
PARAMETER
VCBO
VCEO
VEBO
IC
IB
PC
Tj
Tstg
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector dissipation
Junction temperature
Storage temperature
CONDITIONS
Open emitter
Open base
Open collector
TC=25
VALUE
160
160
5
1.5
0.15
20
150
-55~150
UNIT
V
V
V
A
A
W



SavantIC
SavantIC

2SC4370 Datasheet Preview

2SC4370 Datasheet

SILICON POWER TRANSISTOR

No Preview Available !

2SC4370 pdf
www.datSasaheveat4nu.tcIoCm Semiconductor
Silicon NPN Power Transistors
Product Specification
2SC4370
CHARACTERISTICS
Tj=25 unless otherwise specified
SYMBOL
PARAMETER
CONDITIONS
V(BR)CEO Collector-emitter breakdown voltage IC=10mA ;IB=0
VCEsat Collector-emitter saturation voltage IC=0.5A; IB=50mA
VBE Base-emitter on voltage
IC=0.5A;VCE=5V
ICBO Collector cut-off current
VCB=160V; IE=0
IEBO Emitter cut-off current
hFE DC current gain
fT Transition frequency
COB Collector output capacitance
VEB=5V; IC=0
IC=0.1A ; VCE=5V
IC=0.1A ; VCE=10V
f=1MHz;VCB=10V
MIN TYP. MAX UNIT
160 V
1.5 V
1.0 V
1.0 µA
1.0 µA
70 240
100 MHz
25 pF
hFE Classifications
OY
70-140
120-240
2
