Datasheet Summary

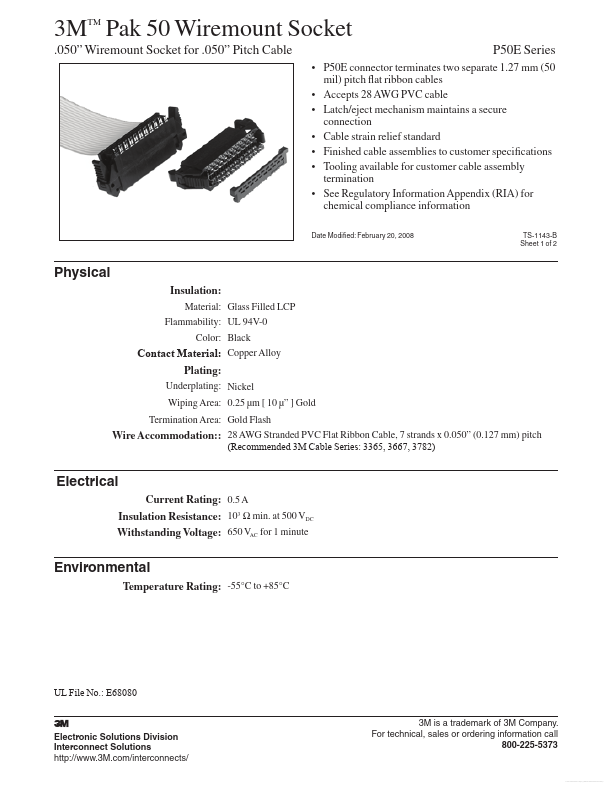

3M™ Pak 50 Wiremount Socket
.050” Wiremount Socket for .050” Pitch Cable
P50E Series
- P50E connector terminates two separate 1.27 mm (50 mil) pitch flat ribbon cables
- Accepts 28 AWG PVC cable
- Latch/eject mechanism maintains a secure connection
- Cable strain relief standard
- Finished cable assemblies to customer specifications
- Tooling available for customer cable assembly termination
- See Regulatory Information Appendix (RIA) for chemical pliance information
Date Modified: February 20, 2008
TS-1143-B Sheet 1 of 2
Physical
Insulation: Material: Glass Filled LCP
Flammability: UL 94V-0 Color: Black
Contact Material: Copper Alloy Plating:
Underplating: Nickel Wiping Area:...
