TP2012, TP2011 - Push-Pull Output Comparators

3PEAK

The TP2012 by 3PEAK is a Push-Pull Output Comparators. Below is the official datasheet preview.

📥 Download Datasheet

TP2012 Push-Pull Output Comparators by 3PEAK - Datasheet Preview — Official preview page of the TP2012 Push-Pull Output Comparators datasheet (3PEAK).

Datasheet Details

Part number	TP2012, TP2011
Manufacturer	3PEAK
File Size	829.04 KB
Description	Push-Pull Output Comparators
Datasheet	TP2011-3PEAK.pdf
Note	This datasheet PDF includes multiple part numbers: TP2012, TP2011. Please refer to the document for exact specifications by model.

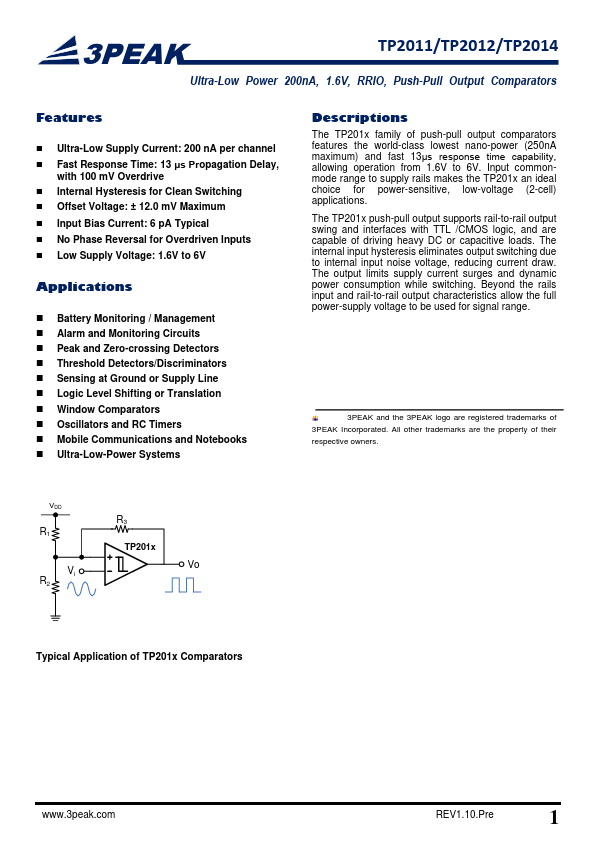

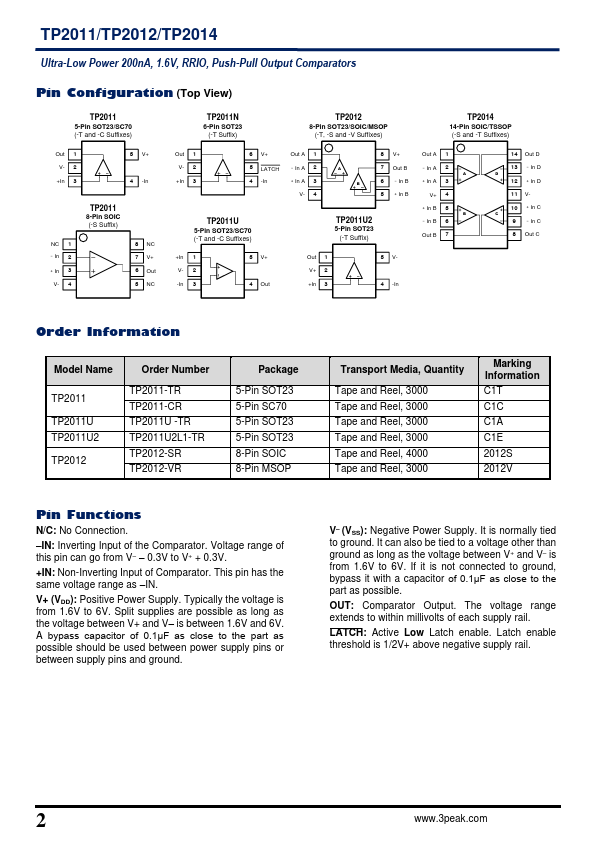

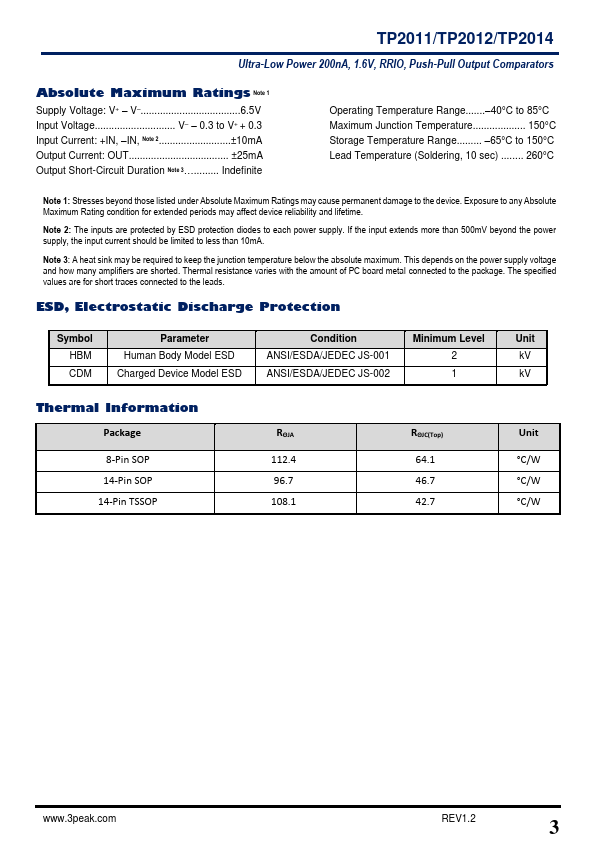

Additional preview pages of the TP2012 datasheet.

TP2012 Product details

Description

The TP201x family of push-pull output comparators

Features

Ultra-Low Supply Current: 200 nA per channel.
Fast Response Time: 13 μs Propagation Delay, with 100 mV Overdrive.
Internal Hysteresis for Clean Switching.
Offset Voltage: ± 12.0 mV Maximum.
Input Bias Current: 6 pA Typical.
No Phase Reversal for Overdriven Inputs.
Low Supply Voltage: 1.6V to 6V.
