TP2331 - Low Noise Precision Op-amps

📥 Download Datasheet

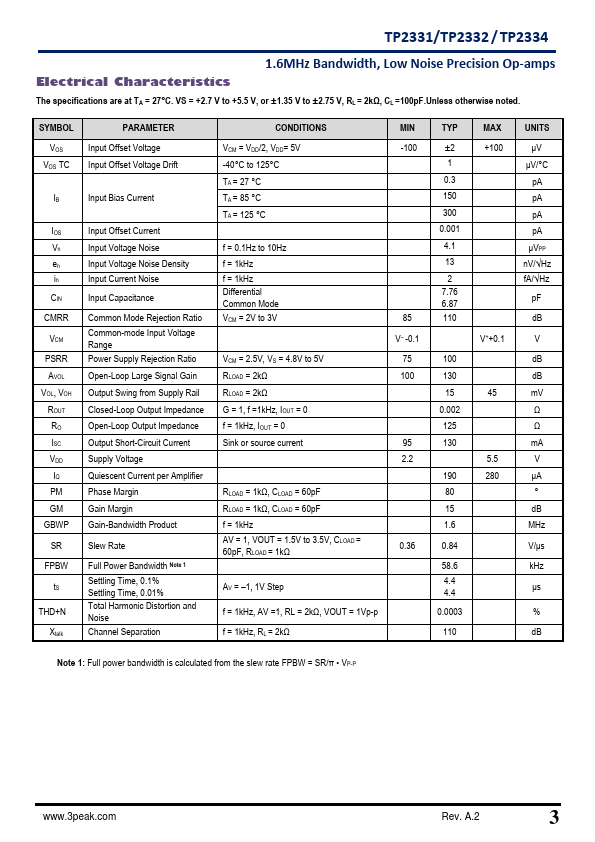

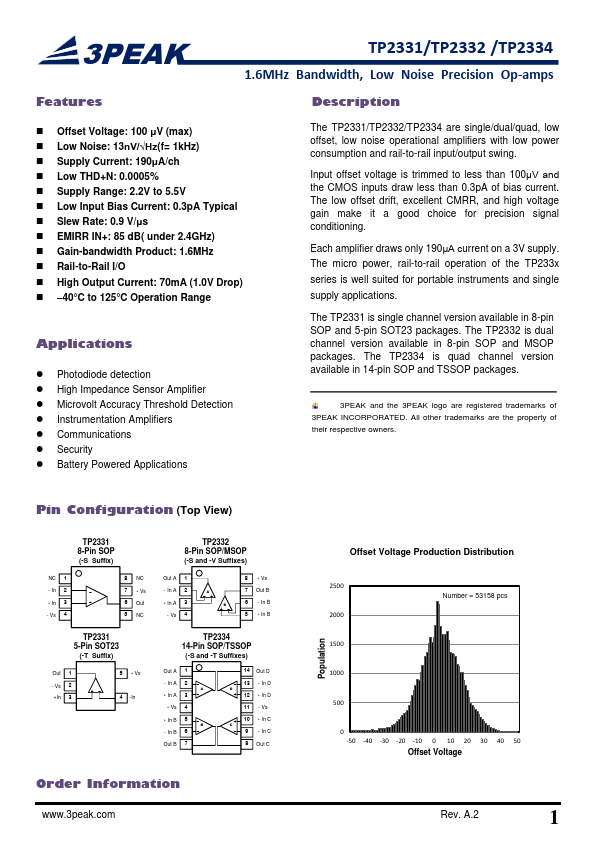

Preview of TP2331 PDF

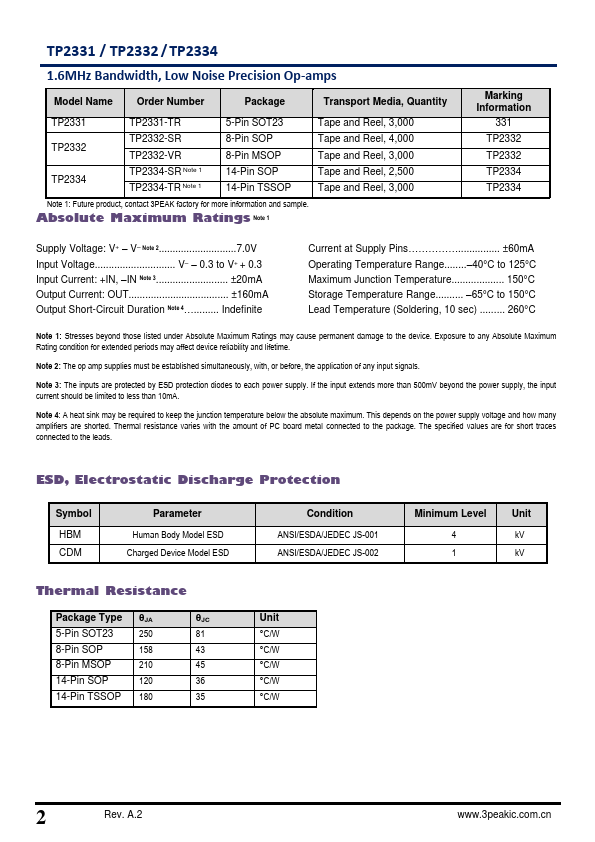

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number TP2331
Manufacturer 3PEAK
File Size 664.14 KB
Description Low Noise Precision Op-amps
Datasheet download datasheet TP2331-3PEAK.pdf

TP2331 Product details

Description

Offset Voltage: 100 μV (max) Low Noise: 13nV/√Hz(f= 1kHz) Supply Current: 190μA/ch Low THD+N: 0.0005% Supply Range: 2.2V to 5.5V Low Input Bias Current: 0.3pA Typical Slew Rate: 0.9 V/μs EMIRR IN+: 85 dB( under 2.4GHz) Gain-bandwidth Product: 1.6MHz Rail-to-Rail I/O High Output Current: 70mA (1.0V Drop) 40°C to 125°C Operation Range Applications Photodiode detection High Impedance Sensor Amplifier
