TPF131 - 36M HD Composite Video Filter Driver

Datasheet Summary

Description

TPF131 is a specially designed for consumer applications, high-performance, low-cost video reconstruction filter, it combi

Features

  • 1-HDTV Video Filter Support Composite 1080i/720p.
  • Optimized 6th-order Butterworth Video reconstruction filter： HD Channel: -3dB ≥ 36MHz.
  • Support Multiple Input Biasing: - Provide 80-mV Level-Shift when DC-Coupled - Transparent Input Clamping when AC-Coupled - Support External DC Biasing when AC-Coupled.
  • Very Low Quiescent Current: 6 mA(at 3.3V, Typical).
  • 6dB Gain(2V/V), Rail TO Rail Output.
  • AC- or DC-Coupled Output Driving Dual Video Loads (75Ω).
  • Wide Power Su.

📥 Download Datasheet

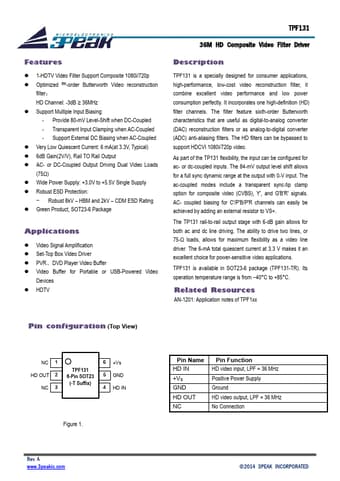

Datasheet preview – TPF131

Datasheet Details

Part number TPF131
Manufacturer 3PEAK
File Size 333.63 KB
Description 36M HD Composite Video Filter Driver
Datasheet download datasheet TPF131 Datasheet
Additional preview pages of the TPF131 datasheet.

📁 Similar Datasheet

  • TPF13C - TP Series Pushbutton Switches (Tyco)
  • TPF13F - TP Series Pushbutton Switches (Tyco)
  • TPF11CGPC - TP Series Pushbutton Switches (Tyco)
  • TPF11CGRA - TP Series Pushbutton Switches (Tyco)
  • TPF11FGPC - TP Series Pushbutton Switches (Tyco)
  • TPF11FGRA - TP Series Pushbutton Switches (Tyco)
  • TPF1205D - 1W 3KVDC Isolated Regulated Single Output DC/DC Converters (TOPPOWER)
  • TPF1205S - 1W 3KVDC Isolated Regulated Single Output DC/DC Converters (TOPPOWER)
  • TPF1206 - Thick Film Chip Resistor (HITANO)
  • TPF1209D - 1W 3KVDC Isolated Regulated Single Output DC/DC Converters (TOPPOWER)
Other Datasheets by 3PEAK
  • TPF130 - 36M HD Composite Video Filter Driver
  • TPF133A - 3-channel Video Filter
  • TPF1341 - 36M HD Composite Video Filter Driver
  • TPF134A - 4-Channel Video Amplifier
  • TPF110 - Ultra-low Power Video Filter
  • TPF110L - Ultra-low Power Video Filter
  • TPF110U - Ultra-low Power Video Filter
  • TPF111 - SD Video Filter Driver

Full PDF Text Transcription

Click to expand full text
Features  1-HDTV Video Filter Support Composite 1080i/720p  Optimized 6th-order Butterworth Video reconstruction filter： HD Channel: -3dB ≥ 36MHz  Support Multiple Input Biasing: - Provide 80-mV Level-Shift when DC-Coupled - Transparent Input Clamping when AC-Coupled - Support External DC Biasing when AC-Coupled  Very Low Quiescent Current: 6 mA(at 3.3V, Typical)  6dB Gain(2V/V), Rail TO Rail Output  AC- or DC-Coupled Output Driving Dual Video Loads (75Ω)  Wide Power Supply: +3.0V to +5.
