TPL8033 Datasheet - 3PEAK

TPL8033 20-V 200-mA Ultra-Low Noise Ultra-High PSRR Low Dropout Linear Regulator

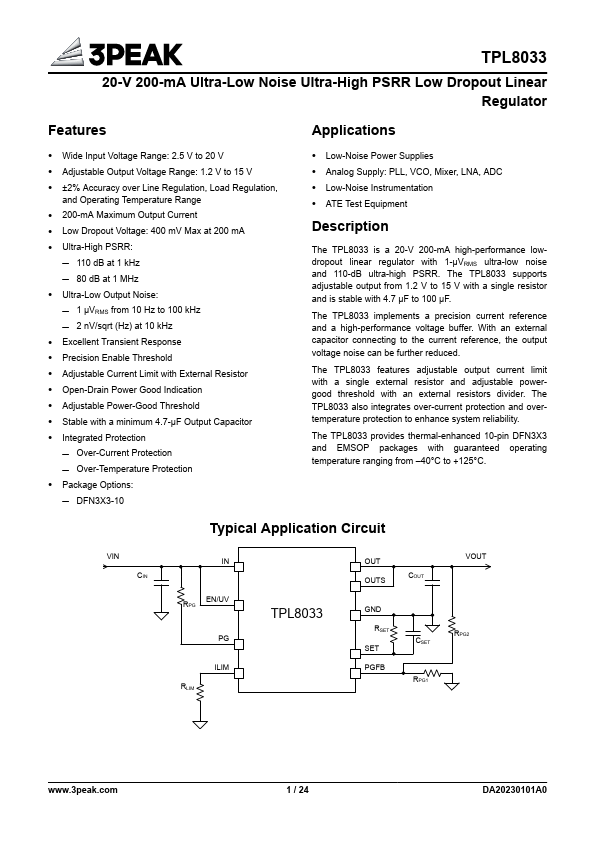

The TPL8033 is a 20-V 200-mA high-performance lowdropout linear regulator with 1-μVRMS ultra-low noise and 110-dB ultra-high PSRR. The TPL8033 supports adjustable output from 1.2 V to 15 V with a single resistor and is stable with 4.7 μF to 100 μF. The TPL8033 implements a precision current referenc.

TPL8033 Features

* Applications

* Wide Input Voltage Range: 2.5 V to 20 V

* Adjustable Output Voltage Range: 1.2 V to 15 V

* ±2% Accuracy over Line Regulation, Load Regulation, and Operating Temperature Range

* 200-mA Maximum Output Current

* Low Dropout Voltage: 400 mV Max at

TPL8033 Datasheet (1.61 MB)

TPL8033 Datasheet Preview — Preview of TPL8033 PDF

Datasheet Details

Part number:

TPL8033

Manufacturer:

3PEAK

File Size:

1.61 MB

Description:

20-v 200-ma ultra-low noise ultra-high psrr low dropout linear regulator.
