TPL820 High Voltage and Low Quiescent Current LDO

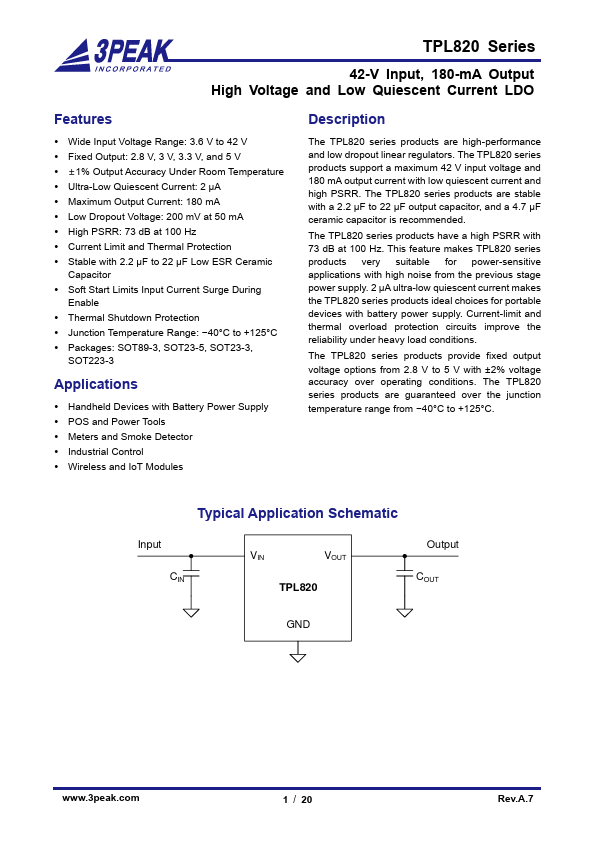

The TPL820 series products are high-performance and low dropout linear regulators. The TPL820 series products support a maximum 42 V input voltage and 180 mA output current with low quiescent current and high PSRR. The TPL820 series products are stable with a 2.2 μF to 22 μF output capacitor, and a .

TPL820 Features

* Wide Input Voltage Range: 3.6 V to 42 V

* Fixed Output: 2.8 V, 3 V, 3.3 V, and 5 V

* ±1% Output Accuracy Under Room Temperature

* Ultra-Low Quiescent Current: 2 µA

* Maximum Output Current: 180 mA

* Low Dropout Voltage: 200 mV at 50 mA

* High PSRR: 73 dB at 100 Hz

TPL820 Datasheet (1.16 MB)

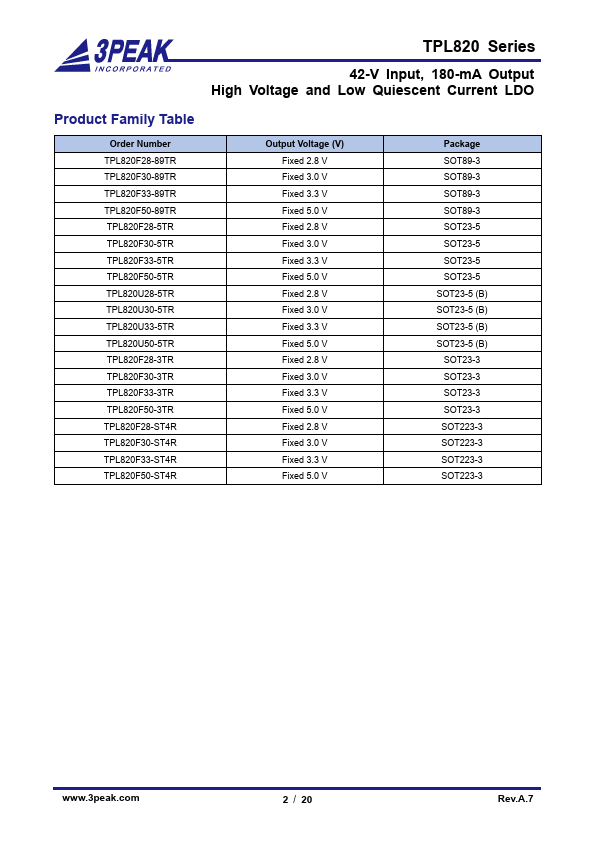

TPL820 Datasheet Preview — Preview of TPL820 PDF

Datasheet Details

Part number:

TPL820

Manufacturer:

3PEAK

File Size:

1.16 MB

Description:

High voltage and low quiescent current ldo.
