TPW4425 Datasheet - 3PEAK

TPW4425 16V General Purpose Analog Switch

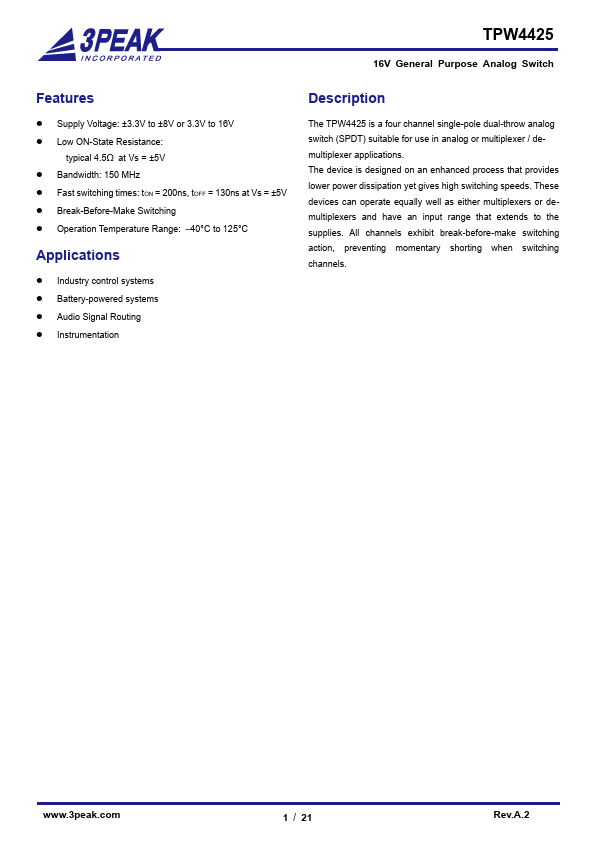

The TPW4425 is a four channel single-pole dual-throw analog switch (SPDT) suitable for use in analog or multiplexer / demultiplexer applications. The device is designed on an enhanced process that provides lower power dissipation yet gives high switching speeds. These devices can operate equally wel.

TPW4425 Features

* Supply Voltage: ±3.3V to ±8V or 3.3V to 16V

* Low ON-State Resistance: typical 4.5Ω at Vs = ±5V

* Bandwidth: 150 MHz

* Fast switching times: tON = 200ns, tOFF = 130ns at Vs = ±5V

* Break-Before-Make Switching

* Operation Temperature Range:

* 40°C to 125°C Application

TPW4425 Datasheet (892.11 KB)

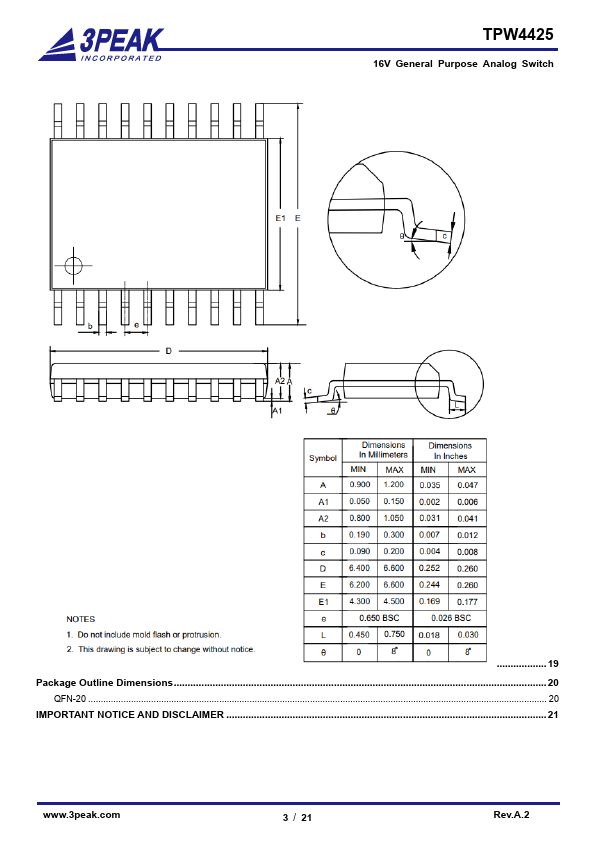

TPW4425 Datasheet Preview — Preview of TPW4425 PDF

Datasheet Details

Part number:

TPW4425

Manufacturer:

3PEAK

File Size:

892.11 KB

Description:

16v general purpose analog switch.
