LMV321TP Datasheet - 3Peak

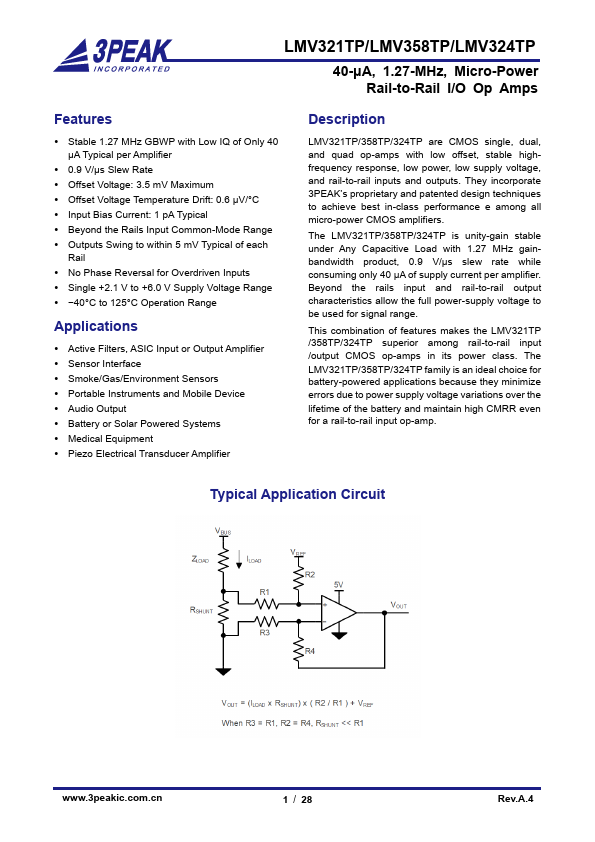

LMV321TP Micro-Power Rail-to-Rail I/O Op Amps

LMV321TP/358TP/324TP are CMOS single, dual, and quad op-amps with low offset, stable highfrequency response, low power, low supply voltage, and rail-to-rail inputs and outputs. They incorporate 3PEAK’s proprietary and patented design techniques to achieve best in-class performance e among all micro-.

LMV321TP Features

* Stable 1.27 MHz GBWP with Low IQ of Only 40 μA Typical per Amplifier

* 0.9 V/μs Slew Rate

* Offset Voltage: 3.5 mV Maximum

* Offset Voltage Temperature Drift: 0.6 μV/°C

* Input Bias Current: 1 pA Typical

* Beyond the Rails Input Common-Mode Range

* Outputs Swing to with

LMV321TP Datasheet (1.65 MB)

LMV321TP Datasheet Preview — Preview of LMV321TP PDF

Datasheet Details

Part number:

LMV321TP

Manufacturer:

3Peak

File Size:

1.65 MB

Description:

Micro-power rail-to-rail i/o op amps.
