AACT210E Datasheet - ADV

AACT210E, AC Thyristor Triac power switch

Available either in through-hole or surface-mount packages, the AACT2 suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation,induction motor starting circuits or for phase control operation in light dimmers,motor sp.

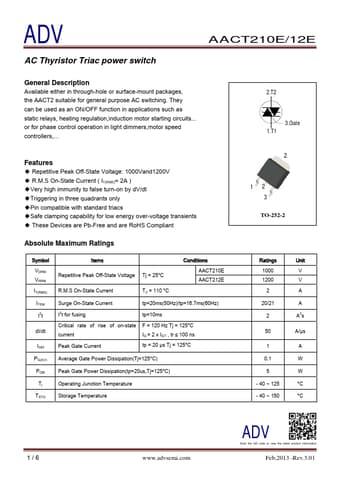

Datasheet Preview Page 1

AACT210E-ADV.pdf

Preview of AACT210E PDF
AACT210E Datasheet Preview Page 2 AACT210E Datasheet Preview Page 3

Datasheet Details

Part number:

AACT210E

Manufacturer:

ADV

File Size:

254.82 KB

Description:

AC Thyristor Triac power switch

AACT210E Features

* Repetitive Peak Off-State Voltage: 1000Vand1200V

* R.M.S On-State Current ( IT(RMS)= 2A )

* Very high immunity to false turn-on by dV/dt

* Triggering in three quadrants only

* Pin compatible with standard triacs

* Safe clamping capability for low energy over-voltage transients
