AACT210W - AC Thyristor Triac power switch

Download the AACT210W datasheet PDF (AACT208W included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ac thyristor triac power switch.

Description

Available either in through-hole or surface-mount packages, the AACT2 suitable for general purpose AC switching.

Features

  • Repetitive Peak Off-State Voltage: 800Vand1000V.
  • R. M. S On-State Current ( IT(RMS)= 2A ).
  • Very high immunity to false turn-on by dV/dt.
  • Triggering in three quadrants only.
  • Pin compatible with standard triacs.
  • Safe clamping capability for low energy over-voltage transients.
  • These Devices are Pb-Free and are RoHS Compliant Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage Tj = 25°C R. M.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AACT208W-ADV.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AACT210W
Manufacturer ADV
File Size 253.24 KB
Description AC Thyristor Triac power switch
Datasheet download datasheet AACT210W Datasheet

📁 Similar Datasheet

Other Datasheets by ADV
  • AACT210D - AC Thyristor Triac power switch
  • AACT210E - AC Thyristor Triac power switch
  • AACT210F - AC Thyristor Triac power switch
  • AACT212D - AC Thyristor Triac power switch
  • AACT212E - AC Thyristor Triac power switch
  • AACT212F - AC Thyristor Triac power switch
  • AACT208W - AC Thyristor Triac power switch
  • AACT108 - AC Thyristor Triac power switch

Full PDF Text Transcription

Click to expand full text

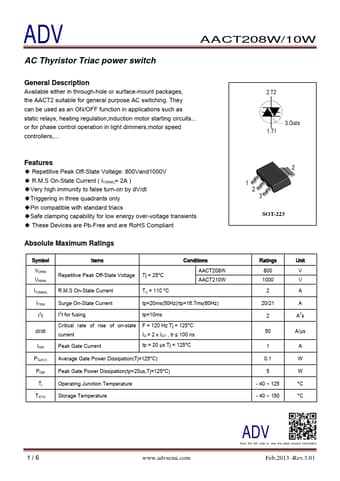

  A  DV AC Thyristor Triac power switch AACT208W/10W General Description Available either in through-hole or surface-mount packages, the AACT2 suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation,induction motor starting circuits... or for phase control operation in light dimmers,motor speed controllers,... 2.T2 3.Gate 1.T1 Features ◆ Repetitive Peak Off-State Voltage: 800Vand1000V ◆ R.M.
