ADT4CH60 Datasheet - ADV

ADT4CH60, 3 Quadrants High temperature Triacs

High current density due to mesa technology , guaranteed maximum junction temperature 150° C. The ADT4CH triac series is suitable for general purpose AC switching. They can beused as an ON/OFF function in applications such as static relays, heating regulation, Rectifier-fed DC inductive loads e.g.DC.

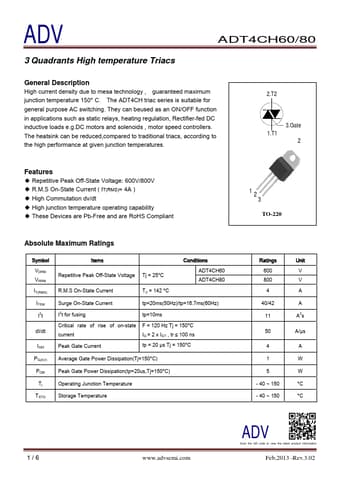

Datasheet Preview Page 1

ADT4CH60-ADV.pdf

ADT4CH60 Datasheet Preview — Preview of ADT4CH60 PDF

ADT4CH60 Datasheet Preview Page 2

ADT4CH60 Datasheet Preview Page 3

Datasheet Details

Part number:

ADT4CH60

Manufacturer:

ADV

File Size:

268.07 KB

Description:

3 Quadrants High temperature Triacs

ADT4CH60 Features

* Repetitive Peak Off-State Voltage: 600V/800V

* R.M.S On-State Current ( IT(RMS)= 4A )

* High Commutation dv/dt

* High junction temperature operating capability

* These Devices are Pb-Free and are RoHS Compliant 1 23 TO-220 Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) IT
