AIT12CH80 - 3 Quadrants High temperature Triacs

Download the AIT12CH80 datasheet PDF. This datasheet also covers the AIT12CH60 variant, as both devices belong to the same 3 quadrants high temperature triacs family and are provided as variant models within a single manufacturer datasheet.

Description

High current density due to mesa technology , guaranteed maximum junction temperature 150° C.

The AIT12CH triac series is suitable for general purpose AC switching.

They can beused as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g.

Features

  • Repetitive Peak Off-State Voltage: 600V/800V.
  • R. M. S On-State Current ( IT(RMS)= 12 A ).
  • High Commutation dv/dt.
  • High junction temperature operating capability.
  • These Devices are Pb-Free and are RoHS Compliant.
  • Isolated heatsink mounted , I.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AIT12CH60-ADV.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AIT12CH80
Manufacturer ADV
File Size 268.71 KB
Description 3 Quadrants High temperature Triacs
Datasheet download datasheet AIT12CH80 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AIT1000 Picotuner Complete Integrated Data Tuner ANADIGICS Inc
AIT1005 PicoTuner Complete Integrated Data Tuner ANADIGICS
AIT1042 Integrated Digital Tuner with RF and IF Gain Control ANADIGICS
AIT02ZPFC-01NL DC-DC / PFC Emerson
AIT8328 Multimedia processor Alpha Imaging Technology

Other Datasheets by ADV

Part Number Description
AIT12CH60 3 Quadrants High temperature Triacs
AIT12C60 3 Quadrants Triacs
AIT12C80 3 Quadrants Triacs
AIT12D60 4 Quadrants Triacs
AIT12D80 4 Quadrants Triacs

Full PDF Text Transcription

Click to expand full text

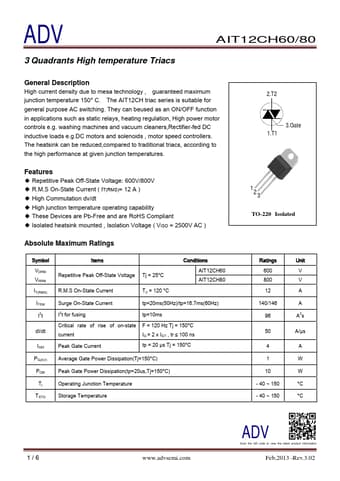

  ADV                                                                          AIT12CH60/80 3 Quadrants High temperature Triacs General Description High current density due to mesa technology , guaranteed maximum junction temperature 150° C. The AIT12CH triac series is suitable for general purpose AC switching. They can beused as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing machines and vacuum cleaners,Rectifier-fed DC inductive loads e.g.DC motors and solenoids , motor speed controllers. The heatsink can be reduced,compared to traditional triacs, according to the high performance at given junction temperatures. Features ◆ Repetitive Peak Off-State Voltage: 600V/800V ◆ R.M.
