AN321 - AND / NOR circuit providing the logical function

Datasheet Details

Part number	AN321
Manufacturer	ams OSRAM
File Size	14.00 KB
Description	AND / NOR circuit providing the logical function
Datasheet	AN321 Datasheet
Additional preview pages of the AN321 datasheet.

📁 Similar Datasheet

AN3211K - VTR Recording Video Signal Processor (Panasonic)
AN3211S - VTR Recording Video Signal Processor (Panasonic)
AN32150B - LED Driver LSI (Panasonic)
AN32151A - LED Matrix driver (Panasonic)
AN32155A - 4 x 3 Matrix LED Driver LSI (Panasonic)
AN32180A - 4 x 4 Dots Matrix LED Driver LSI (Panasonic)
AN32181A - 144 Dots Matrix LED driver (Panasonic)
AN32182A - 6 x 6 Dots Matrix LED Driver (Panasonic)
AN32183A - 9 x 9 Dots Matrix LED Driver (Panasonic)
AN32183B - 81 Dots Matrix LED driver (Panasonic)

Other Datasheets by AMS

Full PDF Text Transcription

Click to expand full text

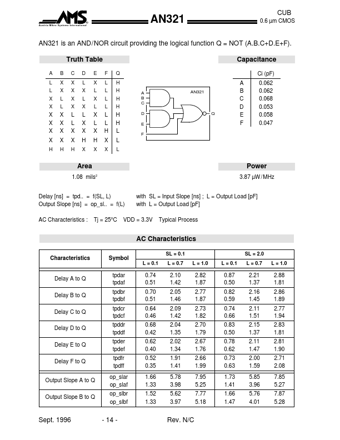

R Austria Mikro Systeme International AN321 CUB 0.6 µm CMOS AN321 is an AND/NOR circuit providing the logical function Q = NOT (A.B.C+D.E+F). Truth Table ABCD EF Q LXXL XL H LXXX L L H XLXL XLH XLXX L L H XXL L XL H XXLX L L H XXXX XH L XXXHHX L HHHX XX L A B C D E F AN321 Q Capacitance Ci (pF) A 0.062 B 0.062 C 0.068 D 0.053 E 0.058 F 0.047 Area 1.08 mils2 Power 3.87 µW / MHz Delay [ns] = tpd.. = f(SL, L) Output Slope [ns] = op_sl.. = f(L) with SL = Input Slope [ns] ; L = Output Load [pF] with L = Output Load [pF] AC Characteristics : Tj = 25°C VDD = 3.
