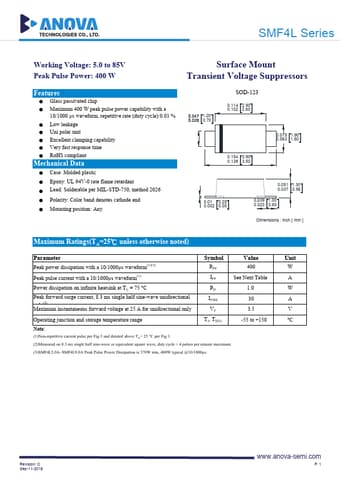

SMF4L16A Overview
Key Specifications
Max Operating Temp: 150 °C
Min Operating Temp: -55 °C
Key Features
- Glass passivated chip
- Maximum 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %
- Uni polar unit
- Excellent clamping capability
- Very fast response time
- RoHS compliant Mechanical Data
- Case: Molded plastic
- Epoxy: UL 94V-0 rate flame retardant
- Lead: Solderable per MIL-STD-750, method 2026
- Polarity: Color band denotes cathode end
