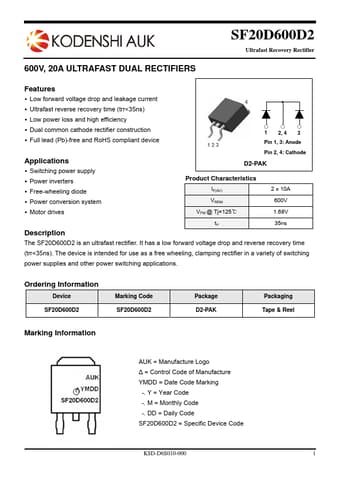

600V, 20A ULTRAFAST DUAL RECTIFIERS
SF20D600D2
Ultrafast Recovery Rectifier
Features
Low forward voltage drop and leakage current
Ultrafast reverse recovery time (trr<35ns)
4
Low power loss and high efficiency
Dual common cathode rectifier construction
Full lead (Pb)-free and RoHS compliant device
Applications
Switching power supply
Power inverters
Free-wheeling diode
Power conversion system
123
1 2, 4 3
Pin 1, 3: Anode
Pin 2, 4: Cathode
D2-PAK
Product Characteristics
IF(AV)
VRRM
2 x 10A
600V
Motor drives
VFM @ Tj=125
1.68V
trr 35ns
Description
The SF20D600D2 is an ultrafast rectifier. It has a low forward voltage drop and reverse recovery time
(trr<35ns). The device is intended for use as a free wheeling, clamping rectifier in a variety of switching
power supplies and other power switching applications.
Ordering Information
Device
SF20D600D2
Marking Code
SF20D600D2
Package
D2-PAK
Packaging
Tape & Reel
Marking Information
AUK = Manufacture Logo
= Control Code of Manufacture
YMDD = Date Code Marking
-. Y = Year Code
-. M = Monthly Code
-. DD = Daily Code
SF20D600D2 = Specific Device Code
KSD-D6S010-000
1




AUK

SF20D600D2 Datasheet Preview

SF20D600D2 Datasheet

20A ULTRAFAST DUAL RECTIFIERS

No Preview Available !

Absolute Maximum Ratings (Limiting Values)
Characteristic
Maximum repetitive reverse voltage
Maximum working peak reverse voltage
Maximum DC blocking voltage
Maximum average forward rectified current
per diode
total device
Peak forward surge current 8.3ms single half sine-wave
superimposed on rated load per diode
Storage temperature range
Maximum operating junction temperature
SF20D600D2
Symbol
VRRM
VRWM
VR
IF(AV)
IFSM
Tstg
Tj
Value
Unit
600 V
10
A
20
100 A
-45to +150
150
Thermal Characteristics
Characteristic
Maximum thermal resistance junction to case
per diode
total device
Symbol
Rth(j-c)
Value
3.0
2.6
Unit
/W
Electrical Characteristics (Per Diode)
Characteristic
Symbol
Peak forward voltage drop
VFM (1)
Reverse leakage current
IRM (1)
Reverse recovery time
trr
Junction capacitance
Cj
Note : (1) Pulse test : tP380 , Duty cycle2%
Test Condition
IFM = 10A
VR = VRRM
Tj=25
Tj=125
Tj=25
Tj=125
IF = 1A, di/dt =-100 A/us
VR = 4VDC, f=1MHz
Min.
-
-
-
-
-
Typ.
-
-
-
-
-
Max.
1.90
1.68
20
200
35
Unit
V
V
uA
uA
ns
- 70 - pF
KSD-D6S010-000
2
