SL71062 - CC/CV Control

Description

The SL71062 is a voltage and current control IC which contains precision voltage reference.

It is suitable for battery charger, second controller of switching regulator systems, and other battery systems.

Features

  • Constant Voltage & Constant Current Control.
  • Wide input voltage range : 2.2V to 14V.
  • Internal Precision Voltage Reference : 1.240V ± 1%.
  • Photo Coupler ( PC ) Drive Current : 40mA Typ.
  • Operating Current : 1mA Max.
  • Easy compensation & Low external component count.
  • Package Outline : SOT26.

📥 Download Datasheet

Datasheet Details

Part number SL71062
Manufacturer AUK
File Size 184.87 KB
Description CC/CV Control
Datasheet download datasheet SL71062 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SL7101 EARTH LEAKAGE CURRENT DETECTOR System Logic Semiconductor
SL701B (SL701 / SL702) Linear Integrated Circuit GEC Plessey Semiconductors
SL701C (SL701 / SL702) Linear Integrated Circuit GEC Plessey Semiconductors
SL702B (SL701 / SL702) Linear Integrated Circuit GEC Plessey Semiconductors
SL702C (SL701 / SL702) Linear Integrated Circuit GEC Plessey Semiconductors

Other Datasheets by AUK

Part Number Description
SL71061 CC/CV Control
SL71063 CC/CV Control
SL71051 CC/CV Control
SL71053 CV Control

Full PDF Text Transcription

Click to expand full text

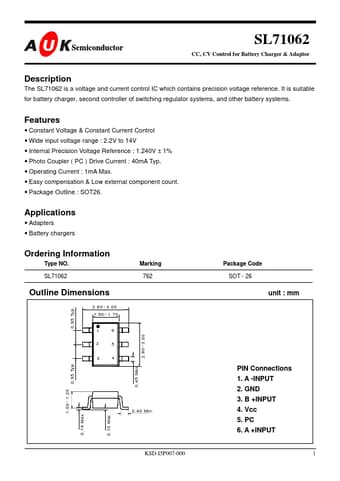

Semiconductor SL71062 CC, CV Control for Battery Charger & Adaptor Description The SL71062 is a voltage and current control IC which contains precision voltage reference. It is suitable for battery charger, second controller of switching regulator systems, and other battery systems. Features • Constant Voltage & Constant Current Control • Wide input voltage range : 2.2V to 14V • Internal Precision Voltage Reference : 1.240V ± 1% • Photo Coupler ( PC ) Drive Current : 40mA Typ. • Operating Current : 1mA Max. • Easy compensation & Low external component count. • Package Outline : SOT26. Applications • Adapters • Battery chargers 0.95 Typ. Ordering Information Type NO. SL71062 Outline Dimensions 2.60~3.00 1.50~1.70 16 25 34 Marking 762 0.45 Max. 2.80~3.00 0.40 Min.
