ALM-12124 - High Power SPDT Switch

Description

Avago Technologies’ ALM-12124 is a multi-chip integrated module that comprise of a 50 Watt CW high power SPDT switch, 1st stage low noise amplifier and 2nd stage high gain driver amplifier through the use of Avago Technologies’ proprietary 0.25 m GaAs Enhancement-mode pHEMT process and low distorti

Features

  •  Very Low Noise Figure.
  •  High Power Switch design.
  •  50 dB isolation between LNA1_Out and LNA2_In.
  •  Small package size 8.0 x 8.0 x 1.2 mm3.
  •  GaAs E-pHEMT Technology [1].
  •  Low Distortion Silicon PIN Diode Technology.
  •  MSL 2a and Lead-free Specifications Typical Performance at 1.90 GHz (Rx mode).
  •  39.5 dB Gain.
  •  0.80 dB Noise Figure.
  •  36.4 dBm Output IP3 Typical Performance at 1.90 GHz (Tx mode).
  •  0.27 dB insertion loss.
  •  40 dB Ant to L.

📥 Download Datasheet

Datasheet Details

Part number ALM-12124
Manufacturer AVAGO
File Size 326.45 KB
Description High Power SPDT Switch
Datasheet download datasheet ALM-12124 Datasheet

📁 Similar Datasheet

  • ALM-1106 - GPS Low Noise Amplifier (Agilent Technologies)
  • ALM-38140 - 50MHz - 4GHz PIN Diode Variable Attenuator (AVAGO TECHNOLOGIES LIMITED)
  • ALM1106 - GPS Low Noise Amplifier (Agilent Technologies)
  • ALM1108 - Programmable Mixed-Signal IC (DIODES)
  • ALM2402-Q1 - Dual Op-amp (Texas Instruments)
  • ALM2402F-Q1 - Automotive Dual Operational Amplifier (Texas Instruments)
  • ALM2403-Q1 - Automotive Dual-Channel Operational Amplifier (Texas Instruments)
  • ALMD-CY3G-YZ002 - High Brightness SMT Round White LED Lamp (Broadcom)
  • ALMD-CY3G-YZF02 - High Brightness SMT Round White LED Lamp (Broadcom)
  • ALMD-CY3G-YZG02 - High Brightness SMT Round White LED Lamp (Broadcom)
Other Datasheets by AVAGO

Full PDF Text Transcription

Click to expand full text

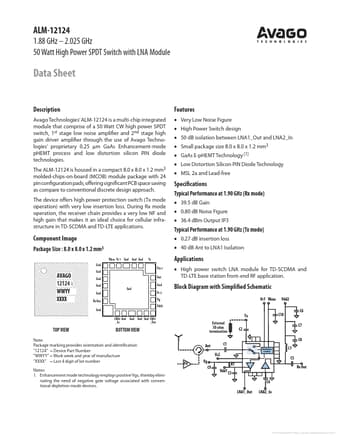

ALM-12124 1.88 GHz – 2.025 GHz 50 Watt High Power SPDT Switch with LNA Module Data Sheet Description Avago Technologies’ ALM-12124 is a multi-chip integrated module that comprise of a 50 Watt CW high power SPDT switch, 1st stage low noise amplifier and 2nd stage high gain driver amplifier through the use of Avago Technologies’ proprietary 0.25 m GaAs Enhancement-mode pHEMT process and low distortion silicon PIN diode technologies. The ALM-12124 is housed in a compact 8.0 x 8.0 x 1.2 mm3 molded-chips-on-board (MCOB) module package with 24 pin configuration pads, offering significant PCB space saving as compare to conventional discrete design approach. The device offers high power protection switch (Tx mode operation) with very low insertion loss.
