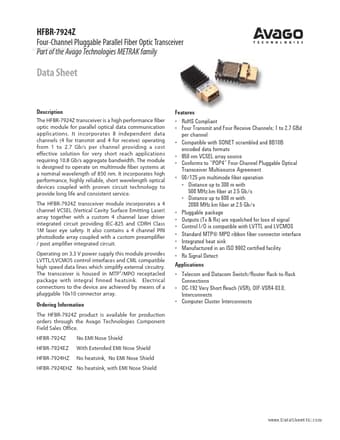

HFBR-7924Z Four-Channel Pluggable Parallel Fiber Optic Transceiver ww Pwa.Drtatoa Sf hteheet4AUv.caogmo Technologies METRAK family Data Sheet Description The HFBR-7924Z transceiver is a high performance fiber optic module for parallel optical data munication applications. It incorporates 8 independent data channels (4 for transmit and 4 for receive) operating from 1 to 2.7 Gb/s per channel providing a cost effective solution for very short reach applications requiring 10.8 Gb/s aggregate bandwidth. The module is designed to operate on multimode fiber systems at a nominal wavelength of 850 nm. It incorporates high performance, highly reliable, short wavelength optical devices coupled with proven circuit technology to provide long life and consistent service. The HFBR-7924Z transceiver module incorporates a 4 channel VCSEL (Vertical Cavity Surface Emitting Laser) array together with a custom 4 channel laser driver integrated circuit providing IEC-825 and CDRH Class 1M laser eye safety. It also contains a 4 channel PIN photodiode array coupled with a custom preamplifier / post amplifier integrated circuit. Operating on 3.3 V power supply this module provides LVTTL/LVCMOS control interfaces and CML patible high speed data lines which simplify external circuitry. The transceiver is housed in MTP®/MPO receptacled package with integral finned heatsink. Electrical connections to the device are achieved by means of a pluggable 10x10 connector array. Ordering Information The HFBR-7924Z product is available for production orders through the Avago Technologies ponent Field Sales Office. HFBR-7924Z No EMI Nose Shield HFBR-7924EZ With Extended EMI Nose Shield HFBR-7924HZ No heatsink, No EMI Nose Shield HFBR-7924EHZ No heatsink, with EMI Nose Shield Features - Ro HS pliant - Four Transmit and Four Receive Channels; 1 to 2.7 GBd per channel - patible with SONET scrambled and 8B10B encoded data formats - 850 nm VCSEL array source - Conforms to “POP4” Four-Channel...
