HLMP-HM75, HLMP-HB74 5mm Standard Oval LEDs

HLMP-HM75 Description

HLMP-HG74/75, HLMP-HM74/75, HLMP-HB74/75 Red, Green and Blue 5 mm Standard Oval LEDs Data Sheet .
These Precision Optical Performance Oval LEDs are specifically designed for full color/video and passenger information signs.

HLMP-HM75 Features

* Well defined spatial radiation pattern
* High brightness material
* Available in red, green and blue color
* Red AlInGaP 626 nm
* Green InGaN 530 nm
* Blue InGaN 470 nm
* Superior resistance to moisture
* Standoff and non-standoff Pac

HLMP-HM75 Applications

* where a wide viewing angle and readability in sunlight are essential. The package epoxy contains UV inhibitor to reduce the effects of long term exposure to direct sunlight. Applications

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HLMP-HM75, HLMP-HB74. Please refer to the document for exact specifications by model.

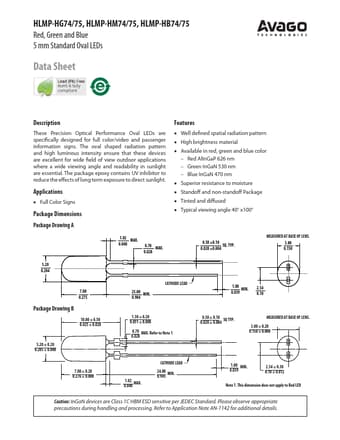

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HLMP-HM75, HLMP-HB74
Manufacturer
AVAGO
File Size
207.74 KB
Datasheet
HLMP-HB74-AVAGO.pdf
Description
5mm Standard Oval LEDs
Note
This datasheet PDF includes multiple part numbers: HLMP-HM75, HLMP-HB74.
Please refer to the document for exact specifications by model.
