HSMF-C146 Datasheet PDF (Side View SMT ChipLED)

Datasheet Details

Part number	HSMF-C146
Manufacturer	AVAGO
File Size	313.84 KB
Description	Side View SMT ChipLED
Datasheet	HSMF-C146 Datasheet
Additional preview pages of the HSMF-C146 datasheet.

📁 Similar Datasheet

HSMF-C116 - Ultra Small Surface Mount Tricolor ChipLED (Broadcom)

HSMF-C165 - (HSMF-C165 - HSMF-C167) Miniature Bi-Color Surface Mount Chip LEDs (Agilent)

HSMF-C166 - (HSMF-C165 - HSMF-C167) Miniature Bi-Color Surface Mount Chip LEDs (Agilent)

HSMF-C167 - (HSMF-C165 - HSMF-C167) Miniature Bi-Color Surface Mount Chip LEDs (Agilent)

HSMF-C655 - Bicolor Surface Mount Chip LED (Agilent)

HSMF-C655 - Surface Mount Chip LEDs (HP)

HSMF-C656 - Bicolor Surface Mount Chip LED (Agilent)

HSMF-C657 - Bicolor Surface Mount Chip LED (Agilent)

HSM101 - SURFACE MOUNT GLASS PASSIVATED HIGH EFFICIENCY SILICON RECTIFIER (VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere) (Rectron Semiconductor)

HSM101 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT HIGH EFFICIENCY RECTIFIER (Dc Components)

Full PDF Text Transcription

Click to expand full text

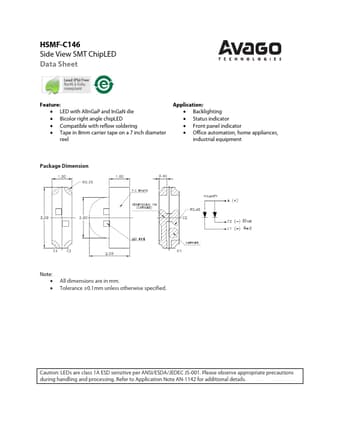

HSMF-C146 Side View SMT ChipLED Data Sheet Feature:  LED with AlInGaP and InGaN die  Bicolor right angle chipLED  Compatible with reflow soldering  Tape in 8mm carrier tape on a 7 inch diameter reel Application:  Backlighting  Status indicator  Front panel indicator  Office automation, home appliances, industrial equipment Package Dimension Note:   All dimensions are in mm. Tolerance ±0.1mm unless otherwise specified. Caution: LEDs are class 1A ESD sensitive per ANSI/ESDA/JEDEC JS-001. Please observe appropriate precautions during handling and processing. Refer to Application Note AN-1142 for additional details. Absolute Maximum Value at TA = 25°C Parameter AlInGaP Red Forward current1 30 Power dissipation 72 Operating temperature Storage temperature Note: 1.
