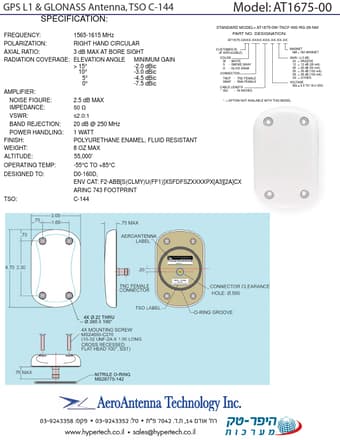

AT1675-00
AT1675-00 is GPS L1 & GLONASS Antenna manufactured by Aero Antenna.
GPS L1 & GLONASS Antenna, TSO C-144
Model: AT1675-00
SPECIFICATION:
FREQUENCY:
1565-1615 MHz
POLARIZATION:
RIGHT HAND CIRCULAR
AXIAL RATIO:
3 dB MAX AT BORE SIGHT
RADIATION COVERAGE: ELEVATION ANGLE
> 15° 10° 5° 0°
MINIMUM GAIN
-2.0 dBic -3.0 dBic -4.5 dBic -7.5 dBic
AMPLIFIER:
STANDARD MODEL= AT1675-0W-TNCF-000-RG-26-NM PART NO. DESIGNATION:
AT1675-OXXX-XXXX-XXX-XX-XX-XX
CUSTOMER ID (IF APPLICABLE)
COLOR W =WHITE S =SMOKE GRAY O =OLIVE DRAB
CONNECTOR TNCF = TNC FEMALE SMAF = SMA FEMALE
CABLE LENGTH
- 000 = IN INCHES
MAGNET NM = NO MAGNET
GAIN (± 2 dB) 00 = PASSIVE 12 = 12 dB (28 mA) 26 = 26 dB (50 mA) 36 = 36 dB (100 mA) 38 = 38 dB (100 mA) XX = OTHER
VOLTAGE RG = 4.5 TO...
