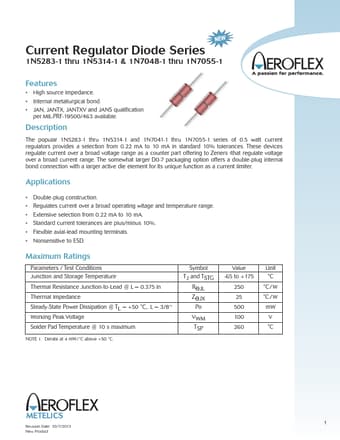

Current Regulator Diode Series
1N5283-1 thru 1N5314-1 & 1N7048-1 thru 1N7055-1
Features
• High source impedance.
• Internal metallurgical bond.
• JAN, JANTX, JANTXV and JANS qualification per MIL-PRF-19500/463 available.
Description
The popular 1N5283-1 thru 1N5314-1 and 1N7041-1 thru 1N7055-1 series of 0.5 watt current regulators provides a selection from 0.22 mA to 10 mA in standard 10% tolerances. These devices regulate current over a broad voltage range as a counter part offering to Zeners (that regulate voltage over a broad current range. The somewhat larger D0-7 packaging option offers a double-plug internal bond connection with a larger active die element for its unique function as a current limiter.
Applications
• Double-plug construction.
