MMA705 - DC to 4 GHz Amplifier

Description

The MMA705 is a fully matched amplifier fabricated in Aeroflex / Metelics reliable InGap HBT technology.

The economical SOT89 package provides excellent wideband performance.

Features

  • DC - 4 GHz Broadband Gain Block.
  • ± 0.5 dB Typical Gain Flatness.
  • 50 Ohms Input/Output Impedances RF Specifications: Parameter 3dB Bandwidth Frequency Range Gain Output Power Standing Wave Ratio 3rd Order Intercept Point Noise Figure Device Current Term BW fO GP P1dB VSWR IP3 NF IC Minimum DC DC 14 +13 --+25 --42 Typical ----15 +15 1.5:1 +27 4 48 Maximum 4 2 ----- 2.0:1 --4.5 55 NOTES: 1. TA = +25 °C. 2. VS = 6.0 Vdc, RBIAS = 22 3. IP3 measured with two tones o.

📥 Download Datasheet

Datasheet Details

Part number MMA705
Manufacturer Aeroflex
File Size 236.23 KB
Description DC to 4 GHz Amplifier
Datasheet download datasheet MMA705 Datasheet

📁 Similar Datasheet

  • MMA701 - High Linearity Packaged HBT (MCE)
  • MMA703 - DC to 6 GHz Amplifier (Aeroflex Circuit Technology)
  • MMA7260Q - Three Axis Low-g Micromachined Accelerometer (Freescale Semiconductor)
  • MMA7260QR2 - Micromachined Accelerometer (NXP)
  • MMA7260QT - Micromachined Accelerometer (NXP)
  • MMA7260QT - Three Axis Low-g Micromachined Accelerometer (Freescale Semiconductor)
  • MMA7261Q - Three Axis Low-g Micromachined Accelerometer (Freescale Semiconductor)
  • MMA7261QT - Three Axis Low-g Micromachined Accelerometer (Freescale Semiconductor)
  • MMA7330L - Three Axis Low-g Micromachined Accelerometer (Freescale Semiconductor)
  • MMA7331L - Three Axis Low-g Micromachined Accelerometer (Freescale Semiconductor)
Other Datasheets by Aeroflex
  • MMA701A - InGaP HBT Amplifier
  • MMA704 - DC to 3.7 GHz Amplifier
  • MMA706 - DC to 6 GHz Amplifier
  • MMA707 - 1 Watt InGaP HBT Amplifier
  • MMA708 - DC to 6 GHz Amplifier
  • MMA709 - 2 Watt InGaP HBT Amplifier
  • MMA710 - DC to 4 GHz Amplifier
  • MMA712 - DC to 12 GHz Amplifier

Full PDF Text Transcription

Click to expand full text

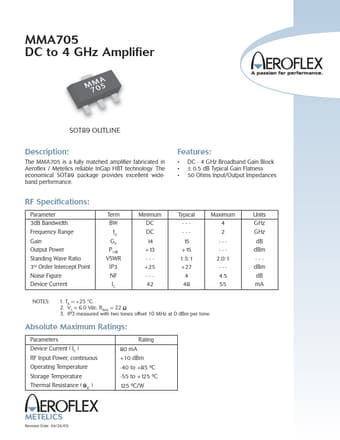

MMA705 DC to 4 GHz Amplifier SOT89 OUTLINE Description: The MMA705 is a fully matched amplifier fabricated in Aeroflex / Metelics reliable InGap HBT technology. The economical SOT89 package provides excellent wideband performance. Features: • DC - 4 GHz Broadband Gain Block • ± 0.5 dB Typical Gain Flatness • 50 Ohms Input/Output Impedances RF Specifications: Parameter 3dB Bandwidth Frequency Range Gain Output Power Standing Wave Ratio 3rd Order Intercept Point Noise Figure Device Current Term BW fO GP P1dB VSWR IP3 NF IC Minimum DC DC 14 +13 --+25 --42 Typical ----15 +15 1.5:1 +27 4 48 Maximum 4 2 ----- 2.0:1 --4.5 55 NOTES: 1. TA = +25 °C. 2. VS = 6.0 Vdc, RBIAS = 22 3. IP3 measured with two tones offset 10 MHz at 0 dBm per tone.
