A1386 5V Field-Programmable Linear Hall Effect Sensor

A1386 Description

A1386 5 V Field-Programmable Linear Hall Effect Sensor IC with 3 V Supply Functionality, Analog Output, and Miniature Package Options .
The Allegro™ A1386 programmable, linear, Hall effect sensor IC is designed for low power, high accuracy, and small package size applications.

A1386 Features

* Low power consumption using 3 V supply
* Factory programmed sensitivity temperature coefficient (0.13%/°C nominal)
* Programmability at end-of-line

A1386 Applications

* The accuracy of this device is enhanced via programmability on the output pin for end-of-line optimization without the added complexity and cost of a fully programmable device. The A1386 has two operating modes, normal and low power. In normal operation mode the A1386 operates much like its predece

📥 Download Datasheet

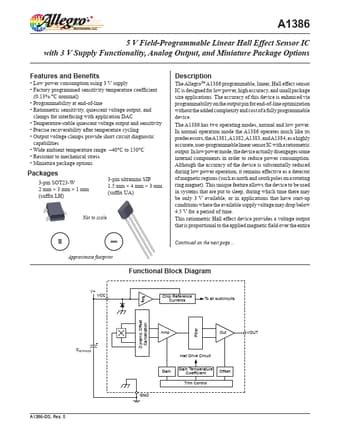

Preview of A1386 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1386
Manufacturer
Allegro
File Size
632.43 KB
Datasheet
A1386-Allegro.pdf
Description
5V Field-Programmable Linear Hall Effect Sensor
