APS12000 Datasheet - Allegro

Vertical and Planar Hall-Effect Latches

APS12000 Features

* ASIL A functional safety compliance

* Planar and vertical Hall-effect sensor ICs

* 3.3 to 24 V operation

* Automotive-grade ruggedness and fault tolerance

* Extended AEC-Q100 qualification

* Internal protection circuits enable 40 V load dump complian

APS12000 General Description

The APS12000 and APS12060 families of Hall-effect latches are AEC-Q100 qualified for 24 V automotive applications and compliant with ISO 26262:2011 ASIL A. These sensors are temperature-stable and suited for operation over extended junction temperature ranges up to 175°C. The APS12000 and APS12060 f.

APS12000 Datasheet (1.45 MB)

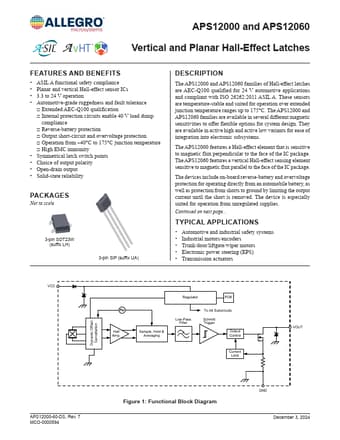

APS12000 Datasheet Preview — Preview of APS12000 PDF

Datasheet Details

Part number:

APS12000

Manufacturer:

Allegro

File Size:

1.45 MB

Description:

Vertical and planar hall-effect latches.
