CT110 - High-Resolution TMR Current Sensor

Allegro

General Description

The CT110 is a high-linearity and high-resolution contact current sensor with isolation that is designed with its patented state-ofthe-art XtremeSense™ TMR technology for high performance.

Key Features

Current range: ±5.0 A, ±10.0 A, ±15.0 A.
Resolution: 5 mA.
Total output error:.

📥 Download Datasheet

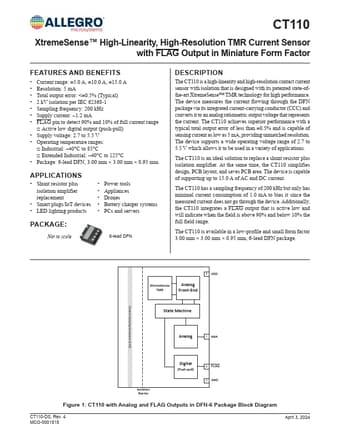

CT110 high-resolution tmr current sensor by Allegro - Datasheet Preview

Datasheet Details

Part number	CT110
Manufacturer	Allegro
File Size	1.98 MB
Description	High-Resolution TMR Current Sensor
Datasheet	CT110 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
CT1101	CIT SWITCH DIMENSIONS	CIT Relay
CT1102	Through-Hole Tactile	CIT Relay
CT1110	Phototransistor Optocoupler	CT Micro
CT1110-W	DC Input 5-Pin Long Mini-Flat Phototransistor Optocoupler	CT Micro
CT1110L-W	Phototransistor Optocoupler	CT Micro

Other Datasheets by Allegro

Part Number	Description
CT100	1D Linear Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

CT110 XtremeSense™ High-Linearity, High-Resolution TMR Current Sensor with FLAG Output in Miniature Form Factor FEATURES AND BENEFITS • Current range: ±5.0 A, ±10.0 A, ±15.0 A • Resolution: 5 mA • Total output error: <±0.5% (Typical) • 2 kV isolation per IEC 62368-1 • Sampling frequency: 200 kHz • Supply current: ~1.2 mA • FLAG pin to detect 90% and 10% of full current range □ Active low digital output (push-pull) • Supply voltage: 2.7 to 5.5 V • Operating temperature ranges: □ Industrial: –40°C to 85°C □ Extended Industrial: –40°C to 125°C • Package: 6-lead DFN, 3.00 mm × 3.00 mm × 0.
