AOZ13987DI-02 Datasheet - Alpha & Omega Semiconductors

AOZ13987DI-02, Smart Protection Switch

AOZ13987DI-02 is protection switch intended for applications that require reverse current protection. The input operating voltage range is from 3.4V to 23V, and both VIN and VOUT terminals are rated at 28V absolute maximum. The power switch is capable for 20 A surge current for 10ms. AOZ13987DI-02 p.

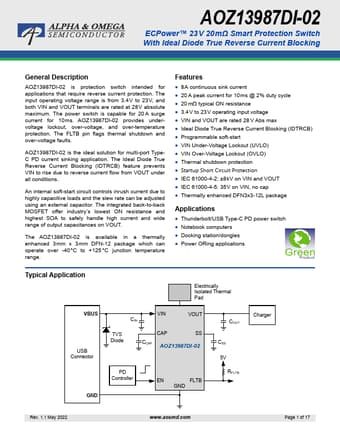

Datasheet Preview Page 1

AOZ13987DI-02-AlphaOmegaSemiconductors.pdf

AOZ13987DI-02 Datasheet Preview — Preview of AOZ13987DI-02 PDF

AOZ13987DI-02 Datasheet Preview Page 2

AOZ13987DI-02 Datasheet Preview Page 3

Datasheet Details

Part number:

AOZ13987DI-02

Manufacturer:

Alpha & Omega Semiconductors

File Size:

0.98 MB

Description:

Smart Protection Switch

AOZ13987DI-02 Features

* 8A continuous sink current

* 20 A peak current for 10ms @ 2% duty cycle

* 20 m typical ON resistance

* 3.4V to 23V operating input voltage

* VIN and VOUT are rated 28 V Abs max

* Ideal Diode True Reverse Current Blocking (IDTRCB)

* Programmable soft-start

* VIN Und
