1N5393G - 1.0A Leaded Type Glass Purpose Rectifiers

This page provides the datasheet information for the 1N5393G, a member of the 1N5391G 1.0A Leaded Type Glass Purpose Rectifiers family.

Features

  • Axial lead type devices for through hole design.
  • High current capability.
  • High surge capability.
  • Glass passivated chip junction inside.
  • Lead-free parts meet environmental standards of MIL-STD-19500 /228.
  • Suffix "-H" indicates Halogen-free parts, ex. 1N5391G-H. Mechanical data.
  • Epoxy : UL94-V0 rated flame retardant.
  • Case : Molded plastic, DO-15.
  • Lead: Axial leads, solderable per MIL-STD-202, Method 208 guranteed.

📥 Download Datasheet

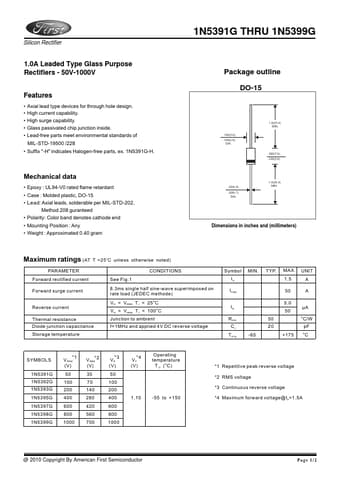

Datasheet preview – 1N5393G
