HER506G, HER501G 5.0A Leaded Type Fast Recovery Effciency Rectifiers

HER506G Description

Silicon Rectifier HER501G THRU HER508G 5.0A Leaded Type Fast Recovery Effciency Rectifiers-50V-1000V .

HER506G Features

* Axial lead type devices for through hole design.
* 5.0A operating at TA=55°C without thermal run away
* High current capability.
* Ultrafast recovery time for high efficiency.
* High surge capability.
* Glass passivated chip junction.
* Lead-

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HER506G, HER501G. Please refer to the document for exact specifications by model.

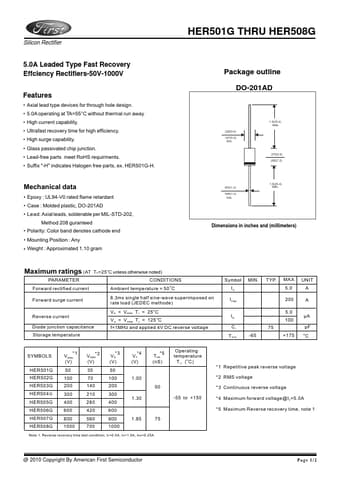

datasheet Preview Page 2

Datasheet Details

Part number
HER506G, HER501G
Manufacturer
American First Semiconductor
File Size
595.45 KB
Datasheet
HER501G-AmericanFirstSemiconductor.pdf
Description
5.0A Leaded Type Fast Recovery Effciency Rectifiers
Note
This datasheet PDF includes multiple part numbers: HER506G, HER501G.
Please refer to the document for exact specifications by model.
