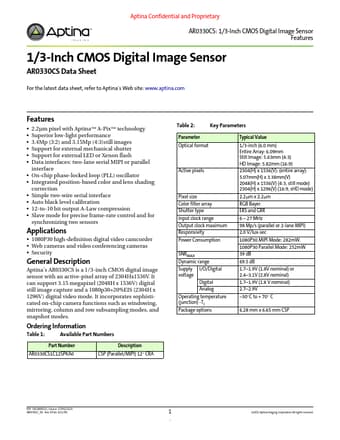

AR0330CS Overview
Aptina's AR0330CS is a 1/3-inch CMOS digital image sensor with an active-pixel array of 2304Hx1536V. It can support 3.15 megapixel (2048H x 1536V) digital still image capture and a 1080p30+20%EIS (2304H x 1296V) digital video mode. It incorporates sophisticated on-chip camera functions such as windowing, mirroring, column and row subsampling modes, and snapshot modes.
AR0330CS Key Features
- 2.2µm pixel with Aptina™ A-Pix™ technology
- Superior low-light performance
- 3.4Mp (3:2) and 3.15Mp (4:3)still images
- Support for external mechanical shutter
- Support for external LED or Xenon flash
- Data interfaces: two-lane serial MIPI or parallel
- On-chip phase-locked loop (PLL) oscillator
- Integrated position-based color and lens shading
- Simple two-wire serial interface
- Auto black level calibration
