Datasheet Summary

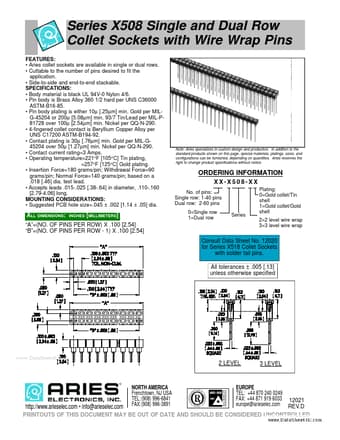

Series X508 Single and Dual Row Collet Sockets with Wire Wrap Pins
Features
:
- Aries collet sockets are available in single or dual rows.
- Cuttable to the number of pins desired to fit the application.
- Side-to-side and end-to-end stackable. SPECIFICATIONS:
- Body material is black UL 94V-0 Nylon 4/6.
- Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
- Pin body plating is either 10µ [.25µm] min. Gold per MILG-45204 or 200µ [5.08µm] min. 93/7 Tin/Lead per MIL-P81728 over 100µ [2.54µm] min. Nickel per QQ-N-290.
- 4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
- Contact plating is 30µ [.76µm] min. Gold per MIL-G45204 over 50µ [1.27µm] min....
