DV430QUM-N10 TFT LCD

of changes Initial Release 1.1 Introduction 1.3 Application 1.4 General Specification 2.0 Temperature/humidity range figure 3.3 VCOM tuning SOP 3.4 Backlight Unit information 3.5 Backlight Input Pin Assignments 8.1 Dimensional Requirements Outline Dimensions(Front view) Outline Dimensions(rear view).

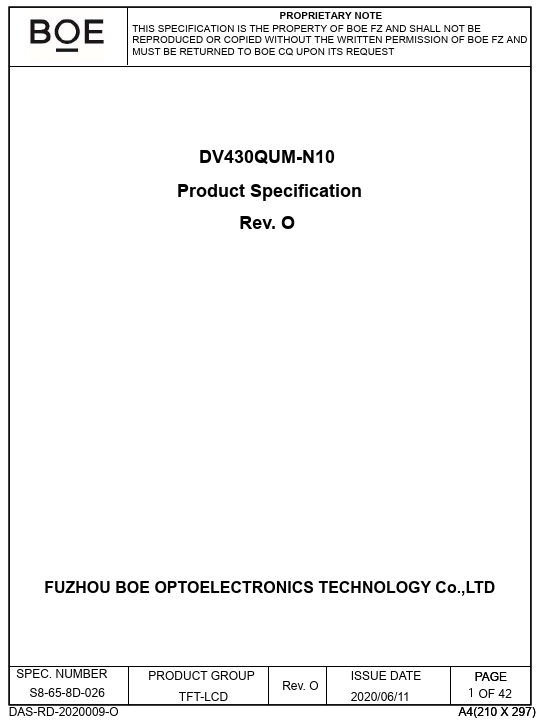

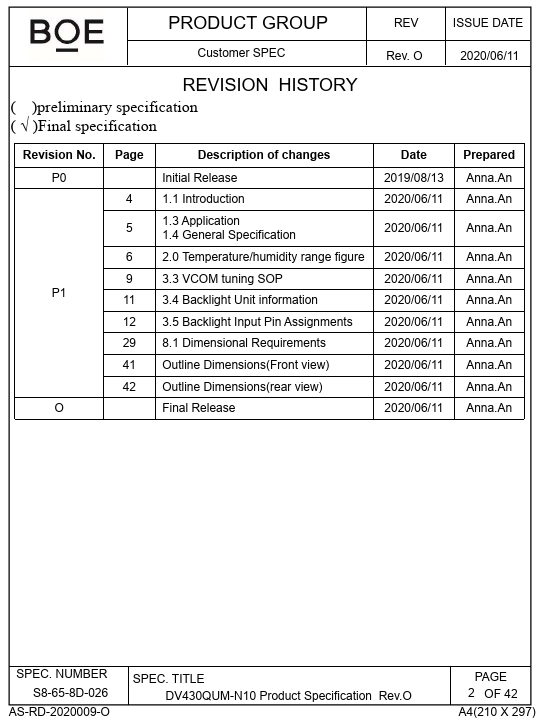

PROPRIETARY NOTE THIS SPECIFICATION IS THE PROPERTY OF BOE FZ AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE FZ AND MUST BE RETURNED TO BOE CQ UPON ITS REQUEST DV430QUM-N10 Product Specification Rev. O FUZHOU BOE OPTOELECTRONICS TECHNOLOGY Co.,LTD SPEC. NUMBER S8-65-8D-026 DAS-RD-2020009-O PRODUCT GROUP TFT-LCD Rev. O ISSUE DATE 2020/06/11 PAGE 1 OF 42 A4(210 X 297) PRODUCT GROUP REV ISSUE DATE Customer SPEC Rev. O 2020/06/11 REVISION HISTORY ( )prelimin.

DV430QUM-N10 Features

* l V by one interface with 8 lanes l High-speed response l Low color shift image quality l 8-bit + FRC color depth, display 1.07G colors l High luminance and contrast ratio, low reflection and wide viewing angle l DE (Data Enable) only mode l ADS technology is applied for high display quality l RoHS
