BM3414 Single-Supply Dual High Current Operational/Audio Amplifier

BM3414 Description

Silicon Core Microelectronics Corp.BM3414 Single-Supply Dual High Current Operational/Audio Amplifier GENERAL .
The BM3414 is integrated circuit is a high gain, high output current, high output voltage swing dual operational amplifier capable of driving 100mA, g.

BM3414 Features

* Single Supply Operating Voltage High Output Current Slew Rate Package Outline Bipolar Technology (+3~+15V), (100mA) (1.0V/µs) SOP8 much improved from CM8608 on input voltage. PIN CONFIGURATION PIN FUNCTION 1 A OUTPUT 2 A-INPUT 3 A+INTPUT 4 GND 5 B+INPUT 6 B-INPUT 7 B OUTPUT 8 V+ ABSOLUTE MAXIMU

📥 Download Datasheet

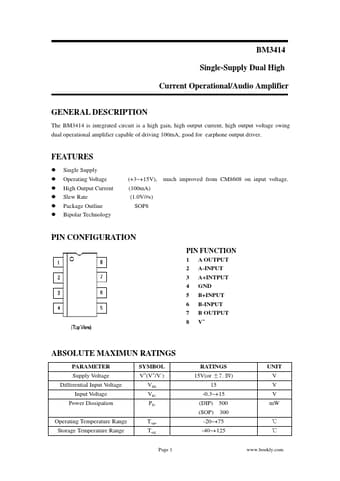

Preview of BM3414 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BM3414
Manufacturer
BOOKLY
File Size
219.39 KB
Datasheet
BM3414-BOOKLY.pdf
Description
Single-Supply Dual High Current Operational/Audio Amplifier
