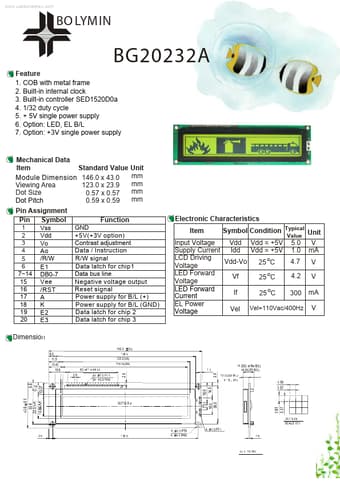

BO LYMIN
BG20232A
Feature 1. COB with metal frame 2. Built-in internal clock 3. Built-in controller SED1520D0a 4. 1/32 duty cycle 5. + 5V single power supply 6. Option: LED, EL B/L 7. Option: +3V single power supply
Mechanical Data Item Standard Value Module Dimension 146.0 x 43.0 Viewing Area 123.0 x 23.9 Dot Size 0.57 x 0.57 Dot Pitch 0.59 x 0.59 Pin Assignment Pin Symbol
1 2 3 4 5 6 7~14 15 16 17 18 19 20 Vss Vdd Vo Ao /R/W E1 DB0-7 Vee /RST A K E2 E3
Unit mm mm mm mm Electronic Characteristics Symbol Condition Typical Unit Value Input Voltage Vdd Vdd = +5V 5.0 V Supply Current Idd Vdd = +5V 1.0 mA LCD Driving 4.7 Vdd-Vo V 25 oC Voltage LED Forward 4.
