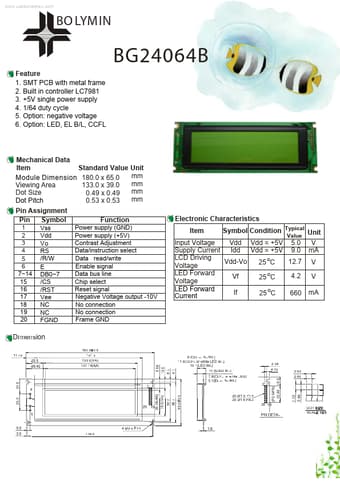

BO LYMIN
BG24064B
Feature 1. SMT PCB with metal frame 2. Built in controller LC7981 3. +5V single power supply 4. 1/64 duty cycle 5. Option: negative voltage 6. Option: LED, EL B/L, CCFL
Mechanical Data Item Standard Value Module Dimension 180.0 x 65.0 Viewing Area 133.0 x 39.0 Dot Size 0.49 x 0.49 Dot Pitch 0.53 x 0.53 Pin Assignment Pin Symbol
1 2 3 4 5 6 7~14 15 16 17 18 19 20 Vss Vdd Vo RS /R/W E DB0~7 /CS /RST Vee NC NC FGND
Unit mm mm mm mm Electronic Characteristics Symbol Condition Typical Unit Value Input Voltage Vdd Vdd = +5V 5.0 V Supply Current Idd Vdd = +5V 9.0 mA LCD Driving 12.7 V Vdd-Vo 25 oC Voltage LED Forward 4.
