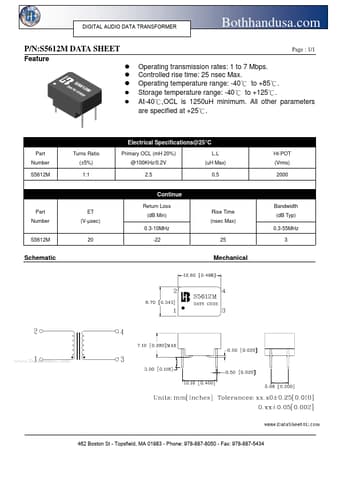

DIGITAL AUDIO DATA TRANSFORMER Bothhandusa.com Page : 1/1 P/N:S5612M DATA SHEET Feature ! ! ! ! ! Operating transmission rates: 1 to 7 Mbps. Controlled rise time: 25 nsec Max. Operating temperature range: -40℃ to +85℃. Storage temperature range: -40℃ to +125℃. At-40℃,OCL is 1250uH minimum. All other parameters are specified at +25℃. Electrical Specifications@25°C Part Number S5612M Turns Ratio (±5%) 1:1 Primary OCL (mH 20%) @100KHz/0.2V 2.5 L.L (uH Max) 0.5 HI-POT (Vrms) 2000 Continue Return Loss Part Number ET (V-µsec) 0.3-10MHz S5612M 20 -22 25 (dB Min) Rise Time (nsec Max) 0.3-55MHz 3 Bandwidth (dB Typ) Schematic Mechanical www.DataSheet4U.
