PQ2614BLA - Shielded Power Inductors

Datasheet Summary

Features

  • n Magnetically shielded n Flat wirewound n Low DCR n High saturation current n Extra solder pad for increased mechanical stability n AEC-Q200 compliant n RoHS compliant.
  • and halogen free.
  • PQ2614BLA/BHA Series - Shielded Power Inductors Electrical Specifications @ 25 °C Bourns Part Number PQ2614BLA-1R0K PQ2614BLA-1R5K PQ2614BHA-2R2K PQ2614BLA-2R2K PQ2614BHA-3R3K PQ2614BLA-3R3K PQ2614BHA-4R7K PQ2614BLA-4R7K PQ2614BHA-6R8K PQ2614BLA-6R8K PQ2614BHA-100K PQ2614BLA-100K PQ2614BHA-150K.

📥 Download Datasheet

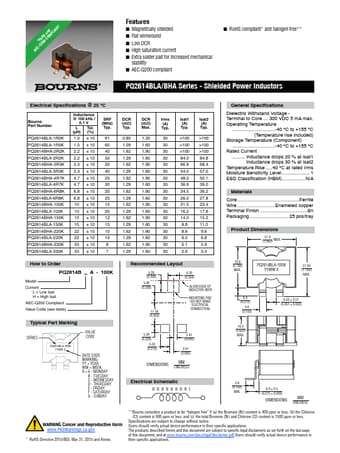

Datasheet preview – PQ2614BLA
