*RoHS COMPLIANT
Features
■ Available in E12 series ■ Unit height of 2.2 mm ■ Current up to 1.5 A ■ High Q level ■ RoHS compliant*
Applications
■ Input/output of DC/DC converters
■ Power supplies for: • Portable communication equipment • Camcorders • LCD TVs • Car radios

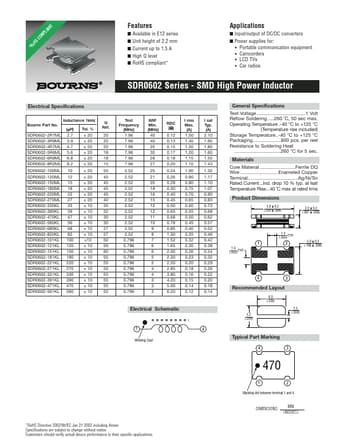

SDR0602 Series - SMD High Power Inductor
Electrical Specifications
Inductance 1kHz
Bourns Part No. (µH) Tol. %
Q Ref.
Test Frequency
(MHz)
SRF Min. (MHz)
RDC (Ω)
I rms Max.
(A)
I sat Typ. (A)
SDR0602-2R7ML 2.7 ± 20
20
7.96
40
0.12 1.50 2.10
SDR0602-3R9ML 3.9 ± 20
20
7.96
40
0.13 1.40 1.90
SDR0602-4R7ML 4.7 ± 20
20
7.96
35
0.15 1.30 1.80
SDR0602-5R6ML 5.6 ± 20
18
7.96
30
0.17 1.20 1.60
SDR0602-6R8ML 6.8 ± 20
18
7.96
28
0.18 1.15 1.55
SDR0602-8R2ML 8.2 ± 20
15
7.96
27
0.20 1.10 1.
