1SMB5915A, 1SMB5913A SILICON ZENER DIODES

1SMB5915A Description

1SMB5913A-1SMB5956A Vz : 3.3 - 200 Volts PD : 3.0 Watts .

1SMB5915A Features

* Complete Voltage Range 3.3 to 200 Volts
* High peak reverse power dissipation
* Flat handling surface for accurate placement
* Low leakage current
* RoHS compliant package Mechanical Data
* Case : SMB Molded plastic
* Epoxy : UL94V-0 rate fla

1SMB5915A Applications

* are based on Bruckewell’s knowledge of typical requirements that are often placed on Bruckewell products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particul

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1SMB5915A, 1SMB5913A. Please refer to the document for exact specifications by model.

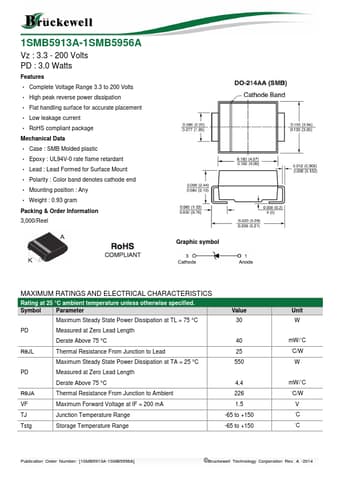

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1SMB5915A, 1SMB5913A
Manufacturer
Bruckewell
File Size
435.49 KB
Datasheet
1SMB5913A-Bruckewell.pdf
Description
SILICON ZENER DIODES
Note
This datasheet PDF includes multiple part numbers: 1SMB5915A, 1SMB5913A.
Please refer to the document for exact specifications by model.
