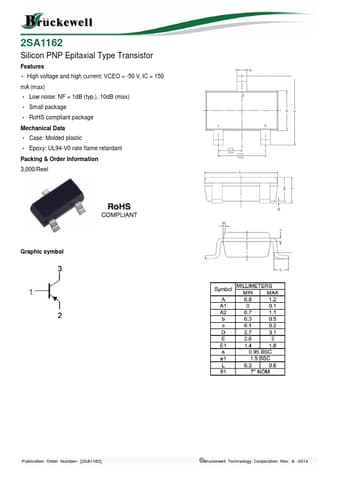

2SA1162
Features
- High voltage and high current: VCEO = -50 V, IC = 150 m A (max)
- Low noise: NF = 1d B (typ.), 10d B (max)
- Small package
- Ro HS pliant package Mechanical Data
- Case: Molded plastic
- Epoxy: UL94-V0 rate flame retardant Packing & Order Information 3,000/Reel
Graphic symbol
Publication Order Number: [2SA1162]
© Bruckewell Technology Corporation Rev. A -2014
Silicon PNP Epitaxial Type Transistor
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
ABSOLUTE MAXIMUM RATING @ Ta=25°C unless otherwise specified
Symbol
Parameter
VCBO
Collector-Base Voltage
VCEO
Collector-Emitter Voltage
VEBO
Emitter-Base Voltage
IC Collector Current
IB Base Current
PC Collector Dissipation
Tj Junction Temperature
Tstg Storage Temperature Range
Value -50 -50 -5 -150 -30 150 125
-55 to +125
Unit V V V m A m A m W °C °C
ELECTRICAL CHARACTERISTICS @ Ta=25°C unless otherwise specified
Symbol Parameter
Test...
