OPA2357, OPA2357_Burr Datasheet - Burr-Brown

OPA2357, OPA2357_Burr, CMOS Operational Amplifier

The OPA357 series of high-speed, voltage-feedback CMOS operational amplifiers are designed for video and other applications requiring wide bandwidth. They are unity-gain stable and can drive large output currents. Differential gain is 0.02% and differential phase is 0.09°. Quiescent current is only .

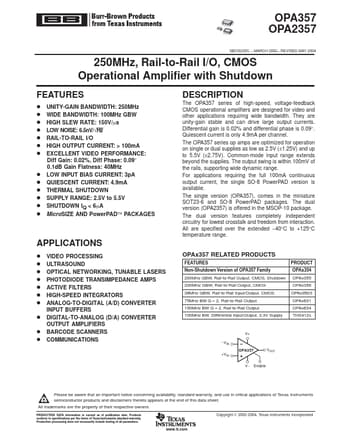

 Datasheet Preview Page 1

OPA2357_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: OPA2357, OPA2357_Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

OPA2357, OPA2357_Burr

Manufacturer:

Burr-Brown

File Size:

424.89 KB

Description:

CMOS Operational Amplifier

Note:

This datasheet PDF includes multiple part numbers: OPA2357, OPA2357_Burr.
Please refer to the document for exact specifications by model.

OPA2357 Features

* D D D D D D D D D D D D D UNITY-GAIN BANDWIDTH: 250MHz WIDE BANDWIDTH: 100MHz GBW HIGH SLEW RATE: 150V/ms LOW NOISE: 6.5nV/√Hz RAIL-TO-RAIL I/O HIGH OUTPUT CURRENT: > 100mA EXCELLENT VIDEO PERFORMANCE: Diff Gain: 0.02%, Diff Phase: 0.095 0.1dB Gain Flatness: 40MHz LOW INPUT BIAS CURRENT: 3pA QUIESCE
