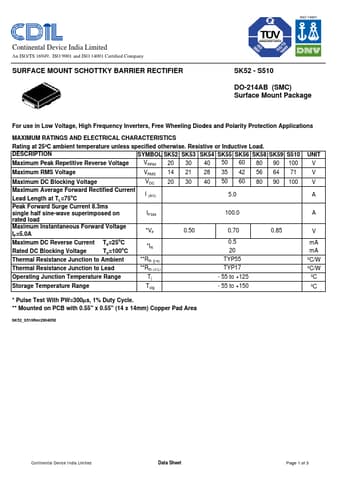

SK52 Datasheet Preview

SK52 Datasheet

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

No Preview Available !

Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
SK52 - S510
DO-214AB (SMC)
Surface Mount Package
For use in Low Voltage, High Frequency Inverters, Free Wheeling Diodes and Polarity Protection Applications
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25ºC ambient temperature unless specified otherwise. Resistive or Inductive Load.
DESCRIPTION
SYMBOL SK52 SK53 SK54 SK55 SK56 SK58 SK59 S510
Maximum Peak Repetitive Reverse Voltage
VRRM 20 30 40 50 60 80 90 100
Maximum RMS Voltage
VRMS 14 21 28 35 42 56 64 71
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Lead Length at TL=75oC
Peak Forward Surge Current 8.3ms
single half sine-wave superimposed on
rated load
Maximum Instantaneous Forward Voltage
IF=5.0A
Maximum DC Reverse Current
Rated DC Blocking Voltage
Ta=25oC
Ta=100oC
Thermal Resistance Junction to Ambient
VDC
I (AV)
IFSM
*VF
*IR
**Rth (j-a)
20
30
0.50
40
50 60
5.0
100.0
0.70
0.5
20
TYP55
80 90 100
0.85
Thermal Resistance Junction to Lead
**Rth (J-L)
TYP17
Operating Junction Temperature Range
Tj
- 55 to +125
Storage Temperature Range
Tstg
- 55 to +150
UNIT
V
V
V
A
A
V
mA
mA
ºC/W
ºC/W
ºC
ºC
* Pulse Test With PW=300µs, 1% Duty Cycle.
** Mounted on PCB with 0.55" x 0.55" (14 x 14mm) Copper Pad Area
SK52_S510Rec290405E
Continental Device India Limited
Data Sheet
Page 1 of 3




CDIL

SK52 Datasheet Preview

SK52 Datasheet

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

No Preview Available !

SK52 - S510
DO-214AB (SMC)
Surface Mount Package
SK52_S510Rec290405E
Continental Device India Limited
Data Sheet
Page 2 of 3
