IN5392 - PLASTIC SILICON RECTIFIER

Download the IN5392 datasheet PDF (IN5391_CHENG included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for plastic silicon rectifier.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IN5391_CHENG-YI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IN5392
Manufacturer CHENG-YI
File Size 101.34 KB
Description PLASTIC SILICON RECTIFIER
Datasheet download datasheet IN5392 Datasheet

📁 Similar Datasheet

  • IN5355 - Induktive Sensoren (ifm)
  • IN5372 - Induktive Sensoren (ifm)
  • IN500-S - Current Transducer (LEM)
  • IN5179 - STABISTORS Also/ Tight Tolerance (Microsemi Corporation)
  • IN5225 - Limit Switch Inductive Sensor (WireMatic)
  • IN5225 - Valve sensors (ifm)
  • IN5400 - PLASTIC SILICON RECTIFIER (CHENG YI)
  • IN5401 - PLASTIC SILICON RECTIFIER (CHENG YI)
  • IN5402 - PLASTIC SILICON RECTIFIER (CHENG YI)
  • IN5403 - PLASTIC SILICON RECTIFIER (CHENG YI)
Other Datasheets by CHENG-YI
  • IN5391 - PLASTIC SILICON RECTIFIER
  • IN5393 - PLASTIC SILICON RECTIFIER
  • IN5394 - PLASTIC SILICON RECTIFIER
  • IN5395 - PLASTIC SILICON RECTIFIER
  • IN5396 - PLASTIC SILICON RECTIFIER
  • IN5397 - PLASTIC SILICON RECTIFIER
  • IN5398 - PLASTIC SILICON RECTIFIER
  • IN5399 - PLASTIC SILICON RECTIFIER

Full PDF Text Transcription

Click to expand full text

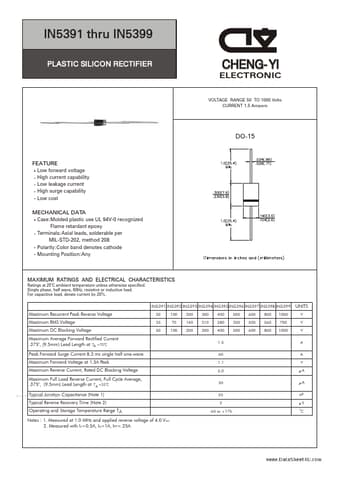

IN5391 thru IN5399 PLASTIC SILICON RECTIFIER CHENG- YI ELECTRONIC VOLTAGE RANGE 50 TO 1000 Volts CURRENT 1.5 Ampere DO-15 FEATURE Low forward voltage High current capability Low leakage current High surge capability Low cost MECHANICAL DATA Case:Molded plastic use UL 94V-0 recognized Flame retardant epoxy Terminals:Axial leads, solderable per MIL-STD-202, method 208 Polarity:Color band denotes cathode Mounting Position:Any MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 250C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
